Engine Control System Diagnosis (1 Of 3) - 1.6L
>>
DTC P0136: O2 Sensor Circuit(Bank 1 / Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

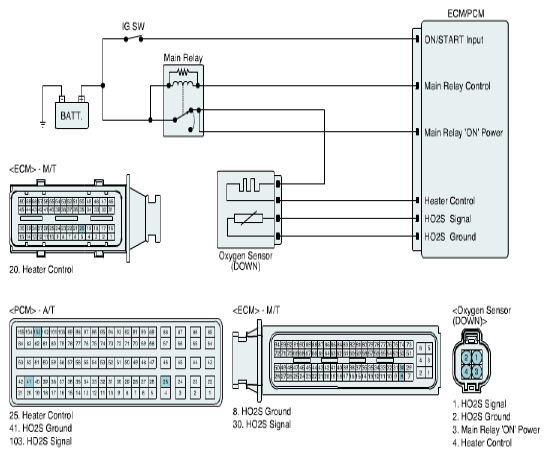

Fig 1: Oxygen Sensor - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
