Current Adjust Circuit Inspection

Check Open or Short in signal circuit
1. IG KEY "OFF".
2. Disconnect HO2S(S1) connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between Current Adjust terminal of HO2S(S1) harness connector and chassis ground.
  Specification : Approx 2.8V

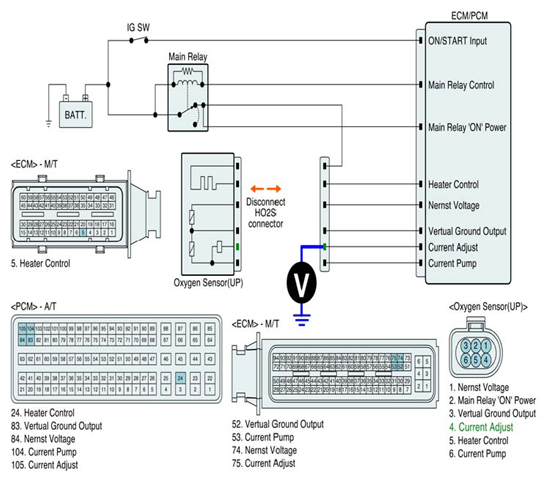

  Fig 1: Measuring Voltage Between Current Adjust Terminal Of HO2S(S1) Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Repair Open or Short circuit and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
