Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON" & engine "OFF".
  3. Selet "Current Data" mode and monitor "Inhibitor switch" parameter.
  4. Change a shift lever from P-range to D-range.
    Fig 1: Display - P Range
    G08332187Courtesy of KIA MOTORS AMERICA, INC.

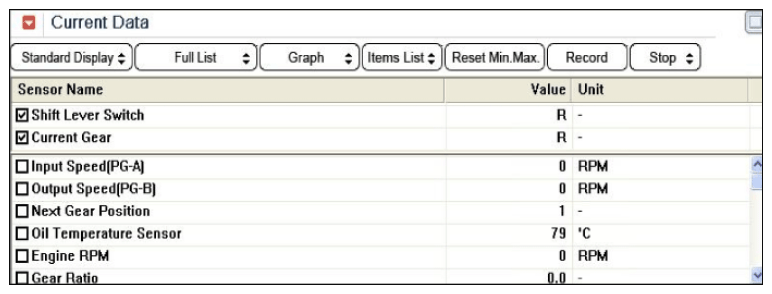

    Fig 2: Display - R Range
    G08332188Courtesy of KIA MOTORS AMERICA, INC.

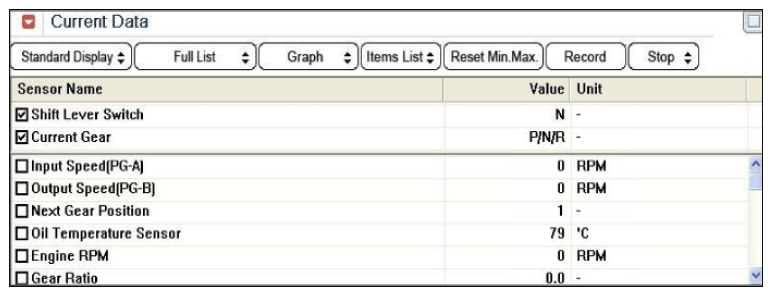

    Fig 3: Display - N Range
    G08332189Courtesy of KIA MOTORS AMERICA, INC.

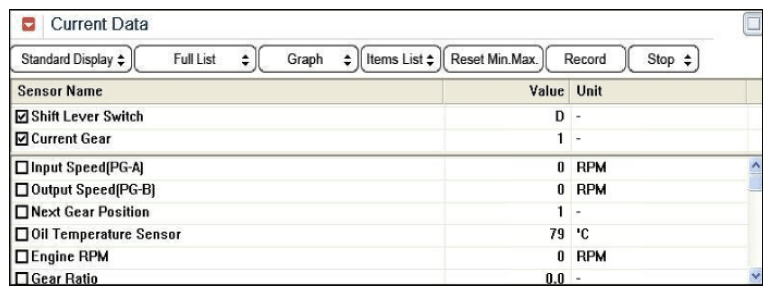

    Fig 4: Display - D Range
    G08332190Courtesy of KIA MOTORS AMERICA, INC.
  5. Is the Inhibitor switch value changed in specification?

    YES

    • Fault is intermittent caused by poor contact of PCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
