Components And Components Location: Components

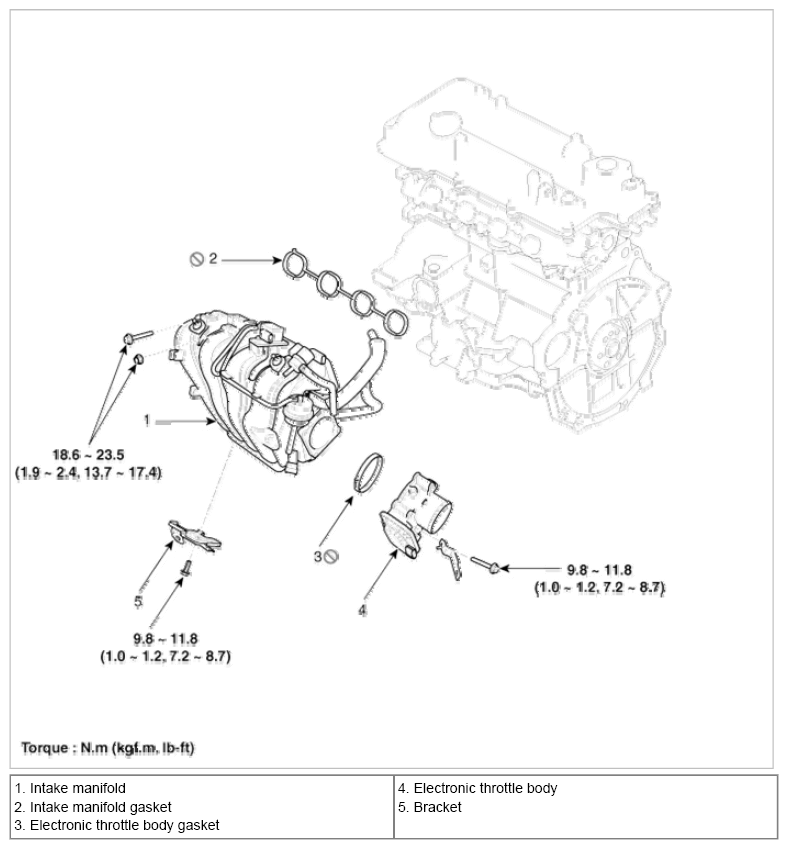

Fig 1: Intake Manifold Replacement Components With Torque Specifications
G08327752Courtesy of KIA MOTORS AMERICA, INC.
