Circuit Diagram: 400W

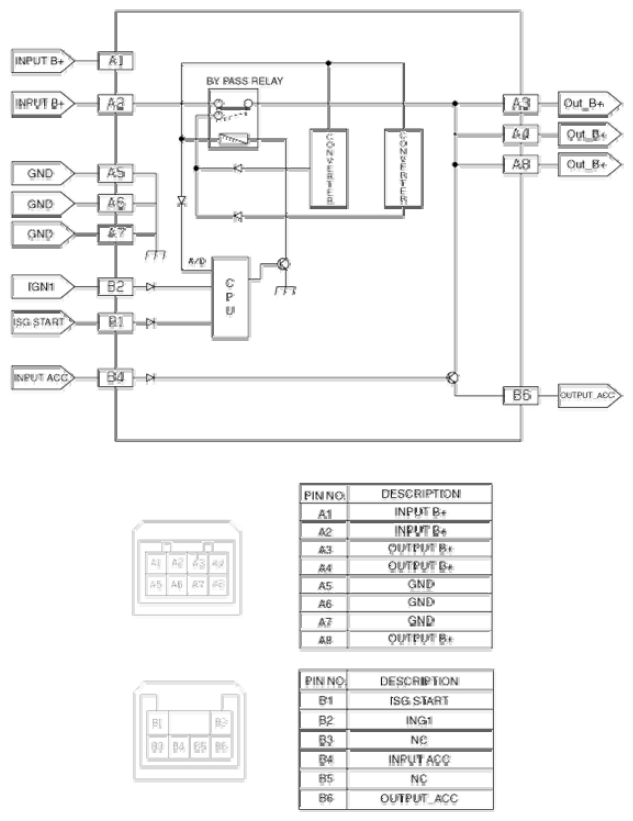

Fig 1: DC/DC Converter (400W) - Circuit Diagram
G08328061Courtesy of KIA MOTORS AMERICA, INC.
NOTE: In the ISG mode, if the power of an audio system turnsOFF by drawdown while "Auto Starting" or "Idle Starting" function operates, replace the DC/DC converter.
