Repair procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the crash pad lower panel. (Refer to "CRASH PAD " in BD group.)
  3. Remove the oil pump unit connector to the left side of the brake pedal.
  4. Remove the oil pump unit (A) after removing the nuts (3ea).

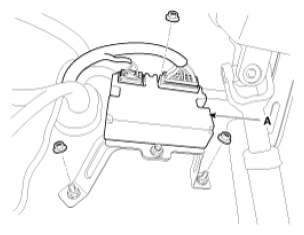

    Fig 1: Identifying Oil Pump Unit
    G08328095Courtesy of KIA MOTORS AMERICA, INC.
