Kia
>>
2013
>>
Soul Base, Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Idle Stop & Go (ISG) System - 1.6L
>>
Oil Pump Unit (OPU)
>>
Schematic Diagrams
>>
Oil Pump Unit (OPU) Connector
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Oil Pump Unit (OPU) Connector: Notes

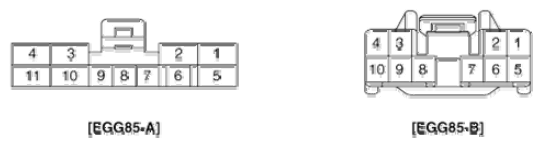

Fig 1: Identifying Oil Pump Unit Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
