Ground Circuit Inspection

Check Open in ground circuit
1. IG KEY "OFF".
2. Disconnect IATS connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between signal terminal of IATS harness connector and chassis ground. (A)
5. Measure the voltage between signal and ground terminal of IATS harness connector and chassis ground. (B)
  Specification: "A" - "B" = Below 200mV

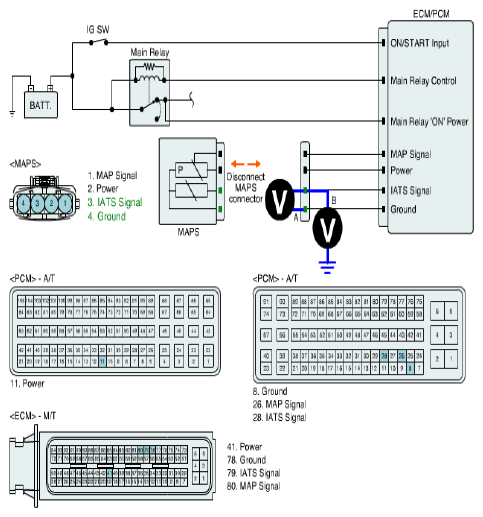

  Fig 1: Measuring Voltage Between Signal And Ground Terminal Of IATS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
6. Is the measured voltage within specification?
  YES

  Go to "COMPONENT INSPECTION " procedure.

  NO

  Check for Open in ground circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
