Power Circuit Inspection

Check Open or Short in power circuit
1. IG KEY "OFF".
2. Disconnect FPS connector.
3. IG KEY "ON" & ENG "OFF".
4. Measure the voltage between power terminal of FPS harness connector and chassis ground.
  Specification: Approx 5V

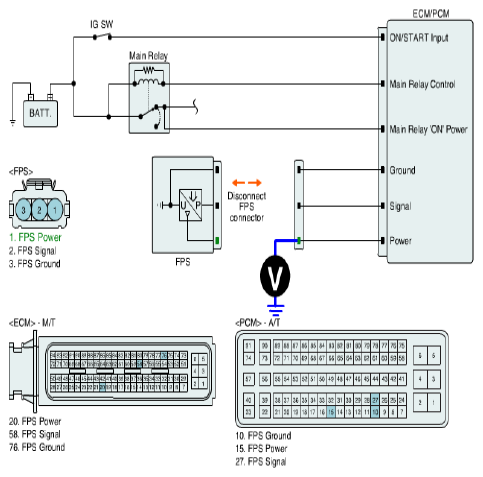

  Fig 1: Measuring Voltage Between Power Terminal Of FPS Harness Connector And Chassis Ground
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is the measured voltage within specification?
  YES

  Go to "SIGNAL CIRCUIT INSPECTION " procedure.

  NO

  Check for Open or Short to ground in FPS circuit. Repair as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
