Front Fog Lamp Control
WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

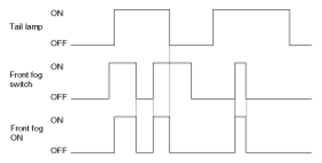

- In case of Tail Lamp Output On (b_TailLamp = On), if Front Fog Lamp Switch input is detected (L_FrontFogSW = On), Front Fog Lamp outputs (C_FrontFogON = On) is turned ON.
Courtesy of KIA MOTORS AMERICA, INC.
