Key Hole Illumination Lamp Control

1. General Description
   1. Key hole illumination provides a convenient ring illumination around the area where the driver has to insert his ignition key to switch terminals.
   2. Key Hole illumination activated by drive or assistant door open, and after close it maintain illumi on during 30 seconds.
2. Transition from "Key Hole Illumination Off"
   STATE DESCRIPTION CHART



   State	Description
   Initial Condition	"Key Hole Illumination Off" state: A_IGN1 == Off
   Event	C_DRVDRSW == On Or C_ASTDRSW == On
   Action	State changed to "Key Hole Illumination On" O_KeyHoleIllum = On

3. Transition from "Key Hole Illumination On"
   STATE DESCRIPTION CHART



   State	Description
   Initial Condition	"Key Hole Illumination On" state:
   Event	A_IGN1 == On or b_BAState1 == On&C_DRVDRSW == Off&C_ASTDRSW == Off
   Action	State changed to "Key Hole Illumination Off" O_KeyHoleIllum = Off

   STATE DESCRIPTION CHART



   State	Description
   Initial Condition	"Key Hole Illumination On" state: A_IGN1 == Off&b_BAState1 == Off
   Event	C_DRVDRSW == Off&C_ASTDRSW == Off
   Action	State changed to "Key Hole Illumination 30" Start Illumi30Timer O_KeyHoleIllum = On (during Illumi30Time)

4. Transition from "Key Hole Illumination 30"

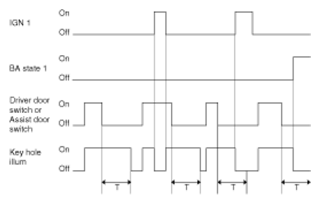

Fig 1: Key Hole Illumination 30 Signal Chart

Courtesy of KIA MOTORS AMERICA, INC.

T1: Illumi 30 time
