Lane Change Turn Signal Control Function

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.
  1. Flasher lane-change feature means that a momentary activation of the turn switch will cause 3 flashes on the indicator circuit.
  2. This lane-change feature operates under the following conditions:
  1. Lane change mode enabled (b_LaneEnable = On)
  2. Ignition 2 shall be On, and the lane change feature is not available if Ignition 2 is Off.
  3. During flashing by lane change mode, it should detect the "Bulb-Failure" mode.
  4. During the Lane Change mode operation, if the user moves the turn switch to the other direction, then Lane change mode is finished and the other direction's flashing (Normal or Lane change flashing) will start depending on the Turn Switch On Period.

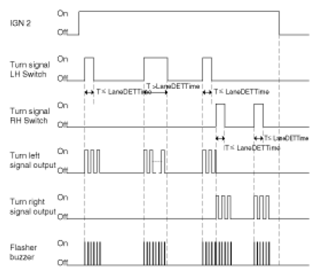

Fig 1: Lane Change Turn Signal Control Function Signal Chart
G07426856Courtesy of KIA MOTORS AMERICA, INC.
