Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC).
  2. Ignition "ON" & Engine "ON".
  3. Selet "Current Data" mode and monitor "Oil temperature sensor" parameter.

    Specification  : Increasing Gradually

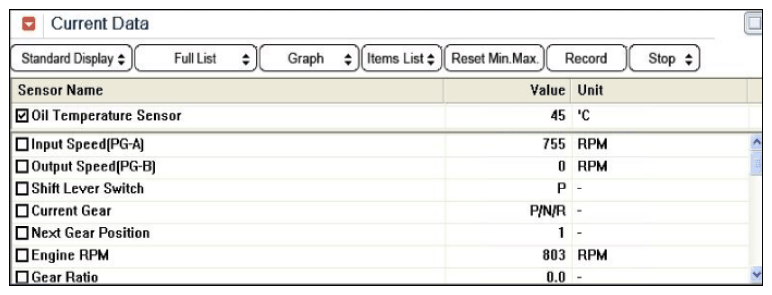

    Fig 1: Display - Normal Data
    G08332195Courtesy of KIA MOTORS AMERICA, INC.

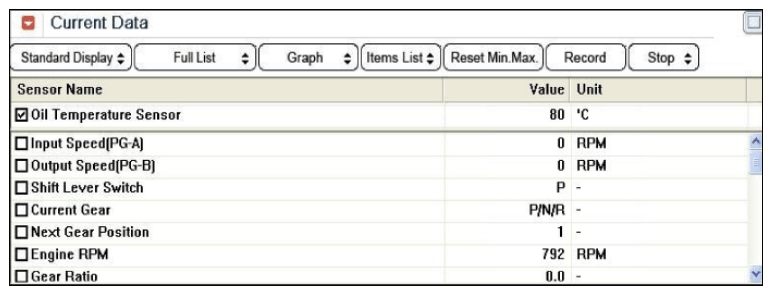

    Fig 2: Display - Open Data
    G08332196Courtesy of KIA MOTORS AMERICA, INC.
  4. Is the Oil temperature sensor within specification?

    YES

    • Fault is intermittent caused by poor contact of PCM and DTC was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
