Soul Base, Standard Trans
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Front/Rear Parking Assist System
>>
Front Rear Parking Assist System Control Unit
>>
Schematic Diagrams
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

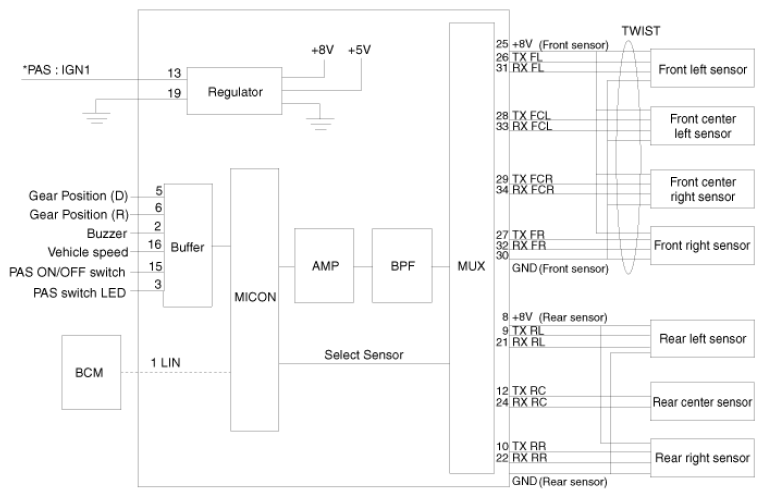

Fig 1: Front Rear Parking Assist System Control Unit - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.

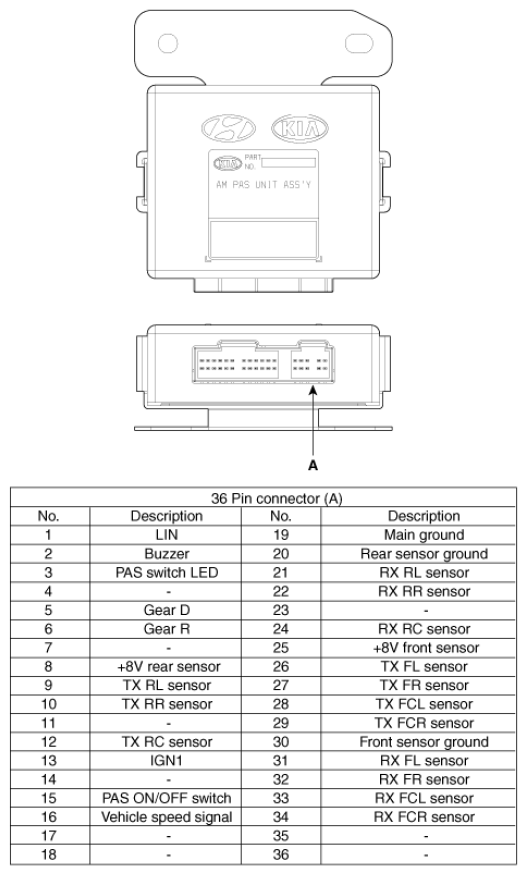

Fig 2: Identifying Front Rear Parking Assist System Control Unit
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
