System
>>
Engine Control System Diagnosis (1 Of 3) - 1.6L
>>
DTC P0078: Exhaust Valve Control Solenoid Circuit (Bank 1)
>>
General Information
>>
Signal Waveform & Data
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Signal Waveform & Data

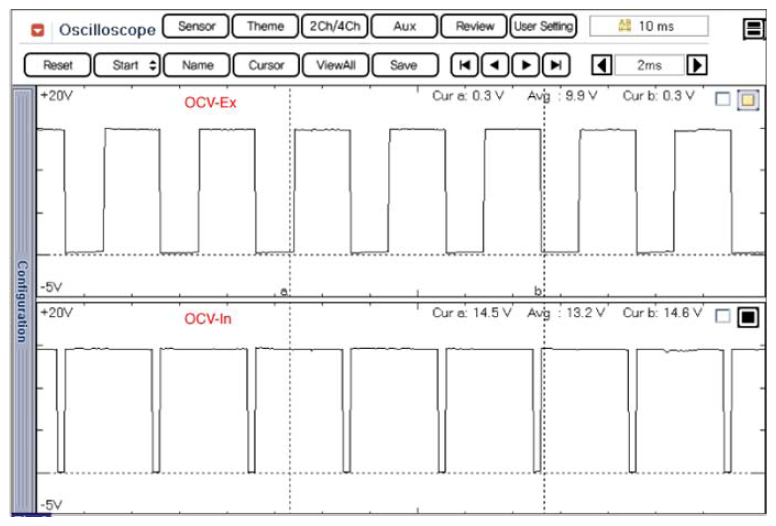

Fig 1: Display - Oil Control Valve Signal Waveform (At Idle)
Courtesy of KIA MOTORS AMERICA, INC.

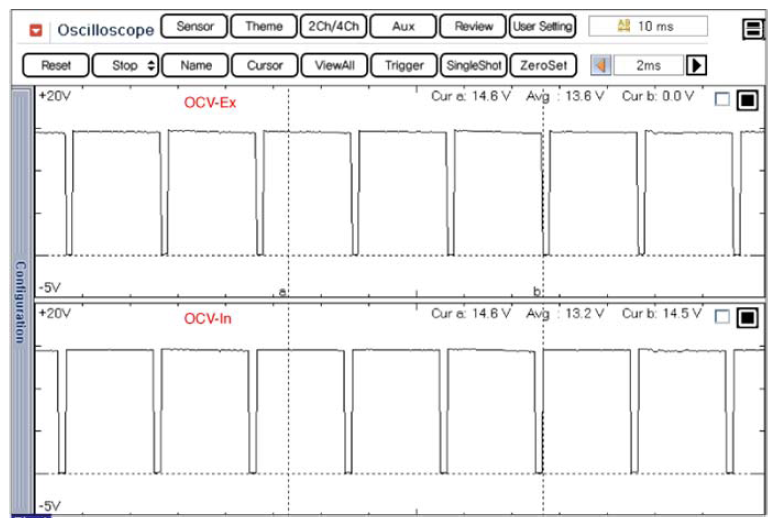

Fig 2: Display - Oil Control Valve Signal Waveform (At Acceleration)
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
