Engine Control System Diagnosis (2 Of 3) - 1.6L
>>
DTC P0263: Cylinder 1-Injector Circuit Balance (Load Drop is Detected)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

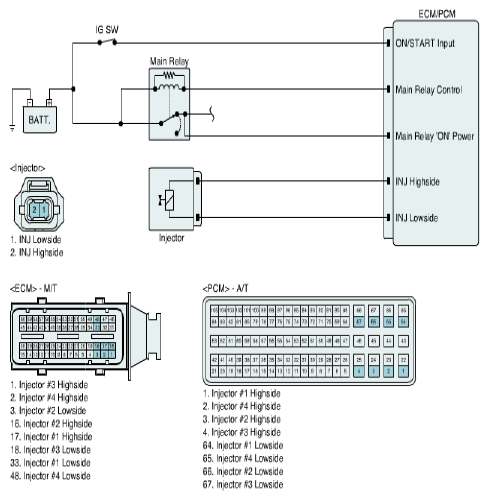

Fig 1: Injector - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
