Diagnostic Circuit Diagram

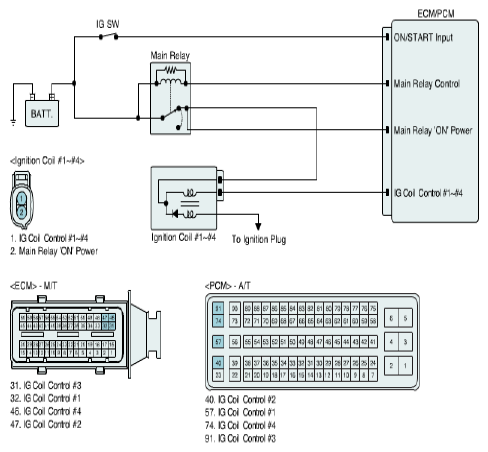

Fig 1: Ignition Coil - Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
