Monitor GDS Data

  1. Connect GDS to Data Link Connector(DLC).
  2. Engine start.
  3. Monitor the "Engine speed" parameters on the GDS.

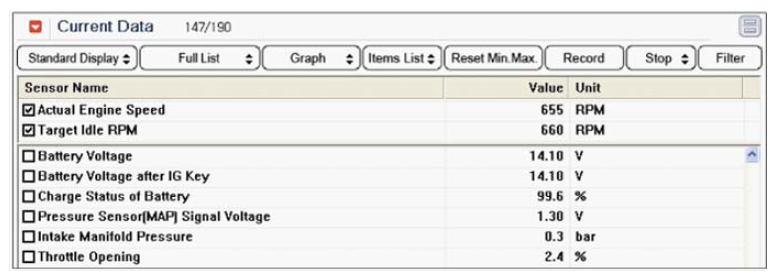

    Fig 1: Display - Monitor Engine Speed Parameters On GDS
    G08333175Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed correctly?

    YES

    Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connect

    NO

    Go to "TERMINAL & CONNECTOR INSPECTION " procedure.
