Description And Operation: Description

WARNING: This page is about a different car, the 2013 Kia Sportage and 2012 Kia Sportage. However, it is still accessible from the selected car via links, so may be relevant.

Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold. The VIS valve controls the vacuum modulator which activates a valve in the intake manifold. The ECM opens or closes this valve according to engine condition (Refer to the table below):

Fig 1: Identifying Variable Intake Solenoid (VIS)

Courtesy of KIA MOTORS AMERICA, INC.

VIS VALVE OPERATION TABLE

Engine condition	VIS valve	Operation
Medium speed	Closed	Increasing engine performance in low engine speed by reducing intake interference among cylinders
Low/High speed	Open	Minimizing intake resistance by shortening intake manifold length and increasing area of air entrance

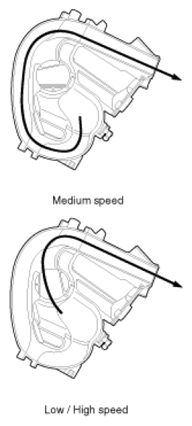

Fig 2: Variable Intake Solenoid Flow Diagram

Courtesy of KIA MOTORS AMERICA, INC.
