Repair Procedures: Removal

Disconnect the negative (-) battery terminal.

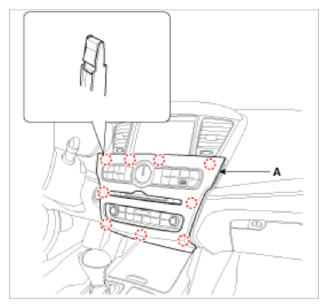

Using a screw driver or remover, remove the center fascia lower panel (A).

Fig 1: Identifying Center Fascia Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

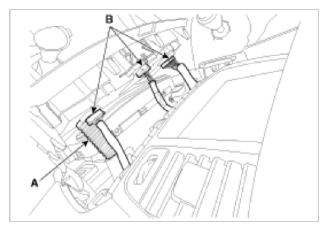

Remove the in-car hose (A) and disconnect the connectors (B) from the heater & A/C control unit.

Fig 2: Identifying In-Car Hose Connectors
Courtesy of KIA MOTORS AMERICA, INC.

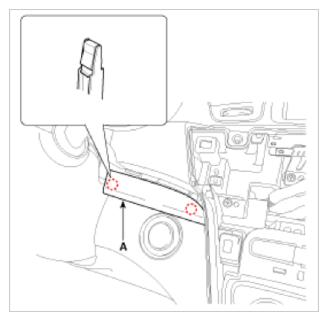

Using a screw driver or remover, remove the crash pad garnish [RH] (A).

Fig 3: Identifying Crash Pad Garnish (RH)
Courtesy of KIA MOTORS AMERICA, INC.

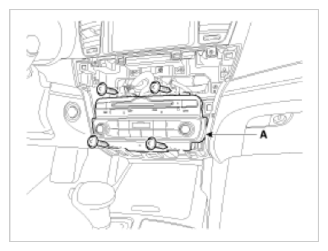

Remove the AVN head unit (A) after loosening the mounting screws.

Fig 4: Identifying AVN Head Unit
Courtesy of KIA MOTORS AMERICA, INC.

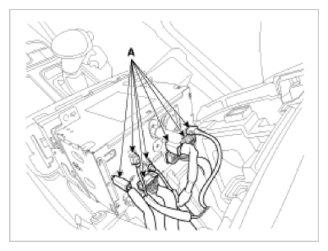

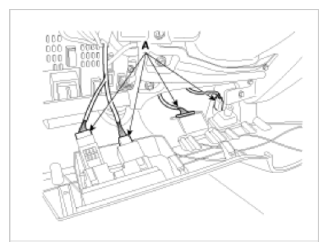

Disconnect the connectors (A) from the AVN head unit.

Fig 5: Identifying AVN Head Unit Connectors
Courtesy of KIA MOTORS AMERICA, INC.

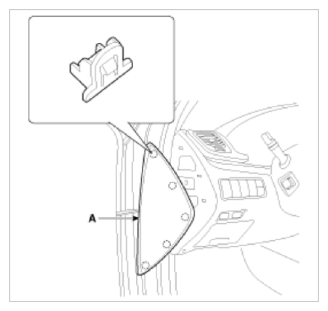

Using a screw driver or remover, remove the crash pad side cover (A).

Fig 6: Identifying Crash Pad Side Cover
Courtesy of KIA MOTORS AMERICA, INC.

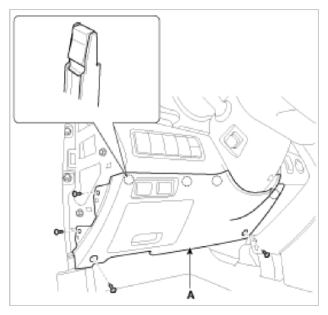

Remove the crash pad lower panel (A) after loosening the mounting screws.

Fig 7: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors (A).

Fig 8: Identifying Crash Pad Lower Panel Connectors
Courtesy of KIA MOTORS AMERICA, INC.

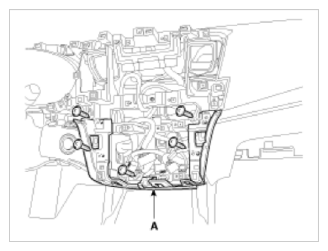

Remove the crash pad center panel (A) after loosening the mounting screws.

Fig 9: Identifying Crash Pad Center Panel
Courtesy of KIA MOTORS AMERICA, INC.

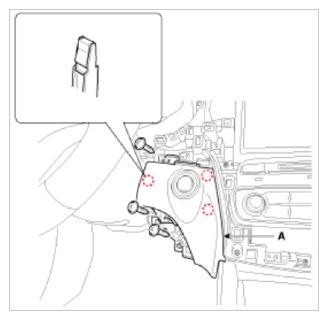

Remove the ignition key grommet (A) after loosening the mounting screws.

Fig 10: Identifying Ignition Key Grommet
Courtesy of KIA MOTORS AMERICA, INC.

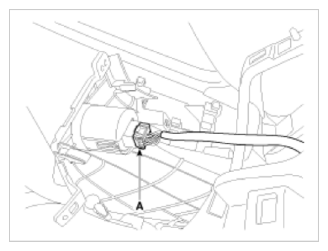

Disconnect the start/stop button connector (A).

Fig 11: Identifying Start/Stop Button Connector
Courtesy of KIA MOTORS AMERICA, INC.

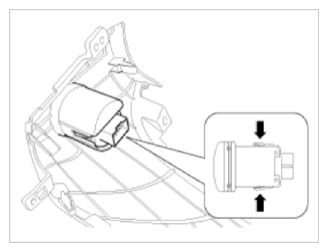

Remove the start/stop button (A) by pushing the both sides of the hooks.

Fig 12: Removing Start/Stop Button
Courtesy of KIA MOTORS AMERICA, INC.
