Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
  4. Disconnect the ventilation hose (B) from the fuel tank air filter and canister close valve.

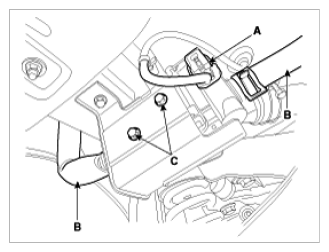

  5. Remove the fuel tank air filter assembly after removing bolts (C).
    Fig 1: Identifying Fuel Tank Air Filter Assembly Components
    G09751355Courtesy of KIA MOTORS AMERICA, INC.

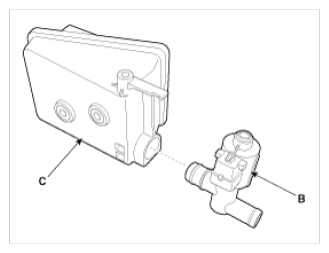

  6. Release the lever (A), and then separate the canister close valve (B) from the fuel tank air filter (C) after rotating it in the direction of the arrow in the figure.
    Fig 2: Separating Canister Close Valve From Fuel Tank Air Filter
    G09751190Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Identifying Canister Close Valve And Fuel Tank Air Filter
    G09635384Courtesy of KIA MOTORS AMERICA, INC.
