Schematic Diagrams: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Release the residual pressure in fuel line.

    (Refer to the "RELEASE RESIDUAL PRESSURE IN FUEL LINE ").

    CAUTION: When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "Release Residual Pressure in Fuel Line" work.
  3. Remove the intake manifold.

    (Refer to "INTAKE MANIFOLD ")

  4. Disconnect the rail pressure sensor connector (A), and then remove the sensor from the delivery pipe.

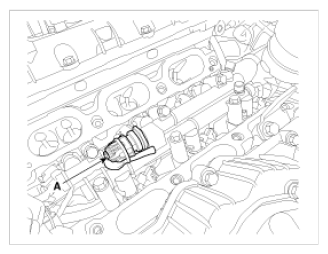

    Fig 1: Identifying Rail Pressure Sensor Connector
    G09751308Courtesy of KIA MOTORS AMERICA, INC.
