Rail Pressure Sensor (RPS)

Pressure [MPa (kgf/cm2 , psi)] Output Voltage (V)
0 (0, 0) 0.5
10 (102, 1450) 2.5
20 (204, 2900) 4.5

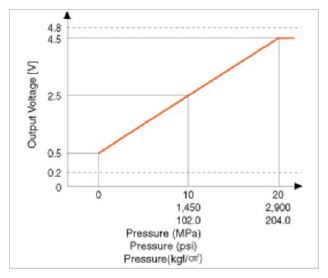

Fig 1: Rail Pressure Sensor Output Voltage Versus Pressure Graph
G09751201Courtesy of KIA MOTORS AMERICA, INC.
