Signal Waveform & Data

Fig 1: Display - Normal Graph Of IATS Screen

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Display - Normal Data Of IATS, ECTS And EOTS At IG On Screen

Courtesy of KIA MOTORS AMERICA, INC.

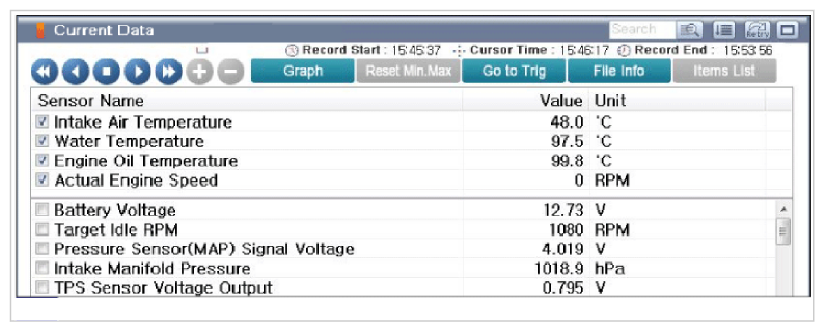

Fig 3: Display - Normal Data Of IATS, ECTS And EOTS Engine At Operating Temperature Screen

Courtesy of KIA MOTORS AMERICA, INC.

The output signals of IATS & ECTS change smoothly without any rapid changes. These 2 sensors have almost the same characteristic signal during the early period after starting. The temperatures of intake air and engine coolant are depended on the temperature of the atmosphere. During engine warm up the output signal of the ECT will change quicker than the IAT signal.
