Signal Waveform & Data

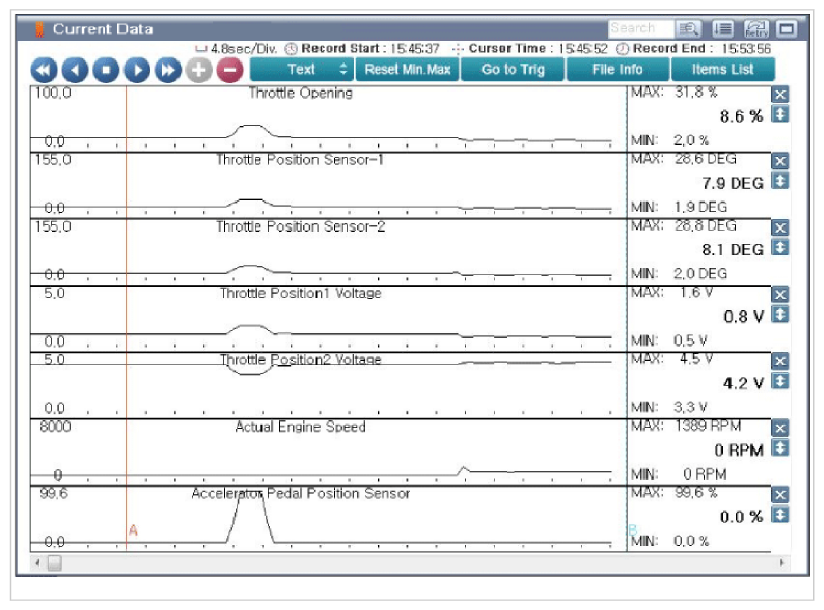

Fig 1: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Not Depressed With IG ON Screen
G09754651Courtesy of KIA MOTORS AMERICA, INC.

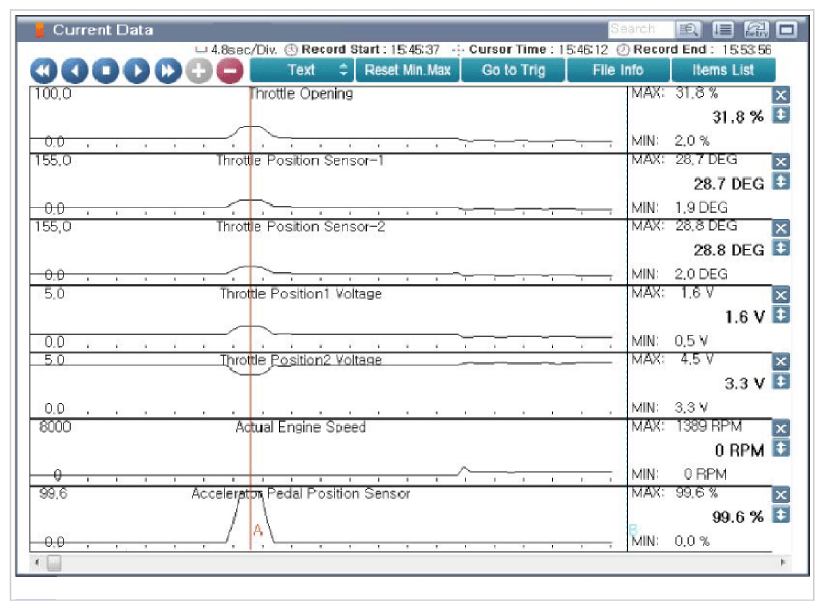

Fig 2: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Depressed With IG ON Screen
G09754652Courtesy of KIA MOTORS AMERICA, INC.
