Engine Control System Diagnosis (1 Of 3)
>>
DTC P0122: Throttle Position Sensor 1 Signal Circuit Low Input
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

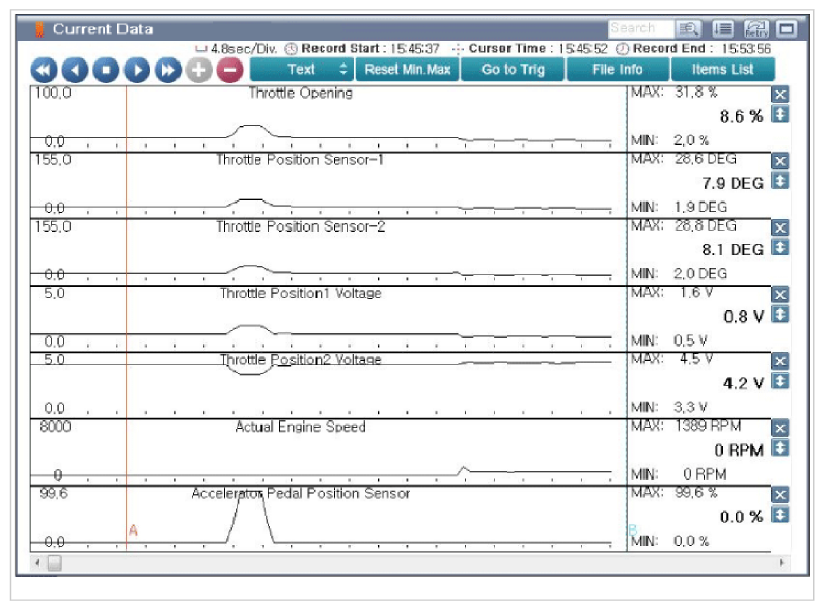

Fig 1: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Not Depressed With IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.

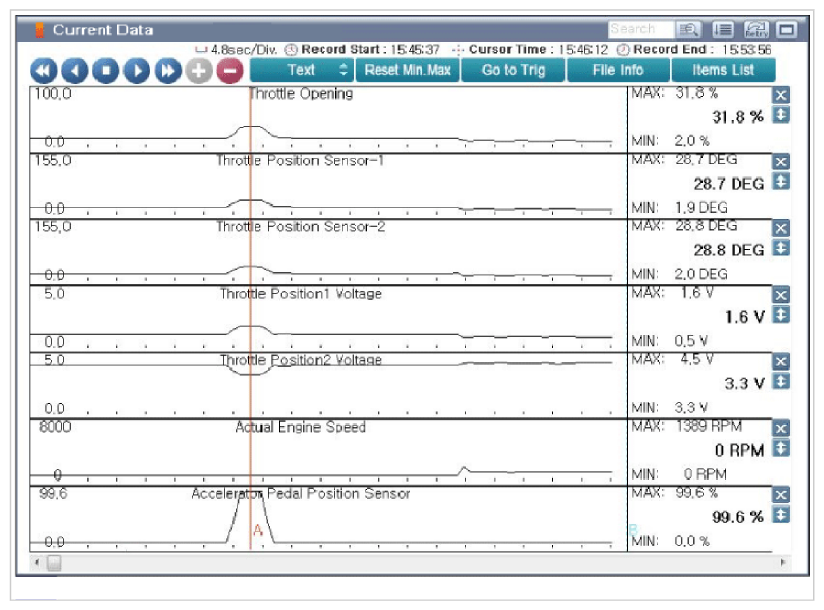

Fig 2: Display - Normal Graph Of TPS1, TPS2 With Acceleration Pedal Depressed With IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
