Engine Control System Diagnosis (1 Of 3)
>>
DTC P0197: Engine Oil Temperature Sensor Low Input
>>
Specification
>>
Signal Waveform & Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Signal Waveform & Data

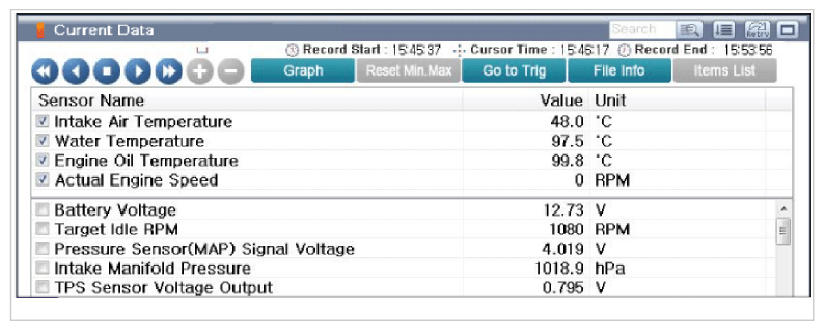

Fig 1: Display - Normal Data Of IATS, ECTS And EOTS At IG ON Screen
Courtesy of KIA MOTORS AMERICA, INC.

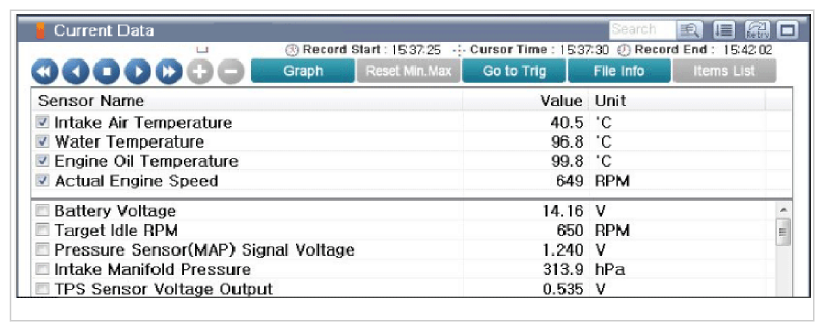

Fig 2: Display - Normal Data Of IATS, ECTS And EOTS Engine At Operating Temperature Screen
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
