Signal Waveform & Data

Fig 1: Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle Screen
G09755037Courtesy of KIA MOTORS AMERICA, INC.

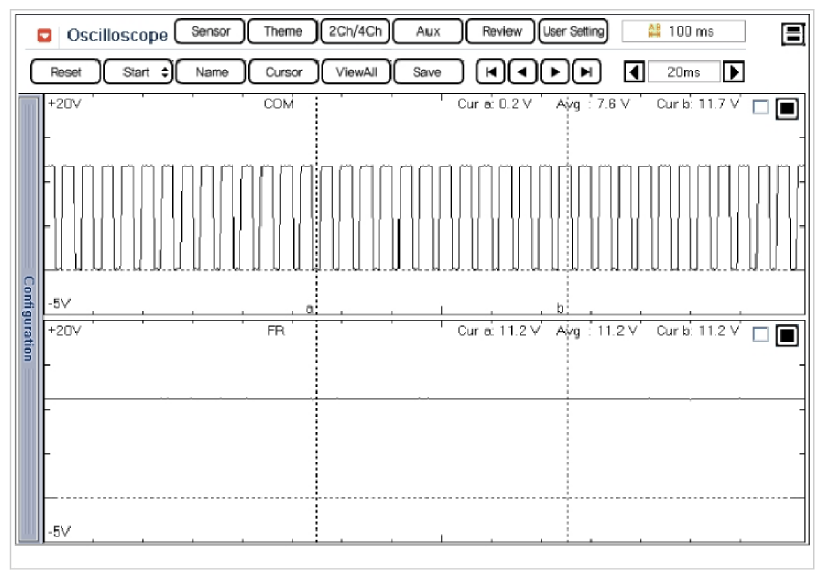

Fig 2: Display - Normal Waveforms Of COM, FR Terminal Of Alternator With Connector Disconnected Condition At IG ON Screen
G09755038Courtesy of KIA MOTORS AMERICA, INC.
