Repair procedures: Removal

Remove the center console assembly.
(Refer to "CONSOLE ")
Remove the duct (A).

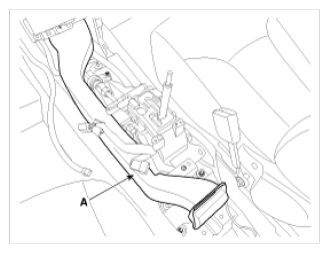

Fig 1: Identifying Duct Of Center Console Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable (B).

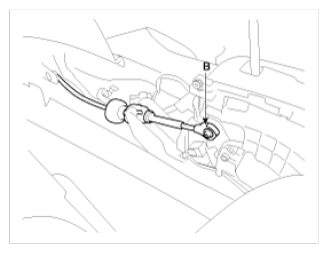

Fig 2: Identifying Control Cable
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the shift cable (A) and then remove the shift cable (B) after pressing the shift cable socket (C) in the direction of "F".

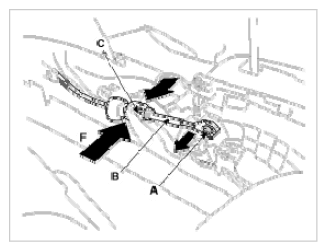

Fig 3: Pressing Shift Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Installing method for shift cable lever side
- Install the cable socket part to the lever assembly securely after adjusting the wings (A) of cable socket part upward.
- Install the cable socket part to the lever assembly securely after adjusting the projection (B) to prevent wrong assembly upward.

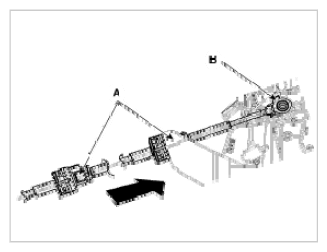

  Fig 4: Installing Cable Socket Part To Lever Assembly
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable assembly in the vehicle after removing the nuts (B) and the retainer (A).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

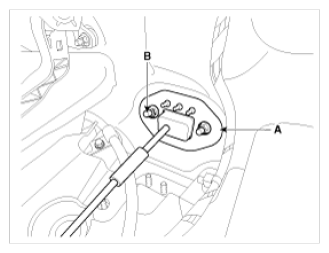

Fig 5: Identifying Retainer And Nuts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the nut (C).
Remove the control cable (B) after removing the nut (C) and the bolt (A).
Tightening torque

(A) 14.7 ~21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

(C) 8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)

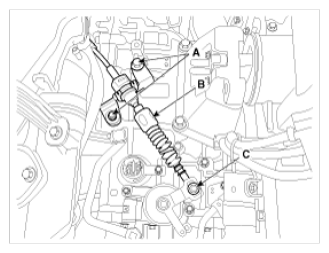

Fig 6: Identifying Control Cable, Nut And Bolt
Courtesy of KIA MOTORS AMERICA, INC.
Remove the control cable inside of cab.
