Repair procedures: Removal

Remove the center console assembly.
(Refer to "FLOOR CONSOLE ")

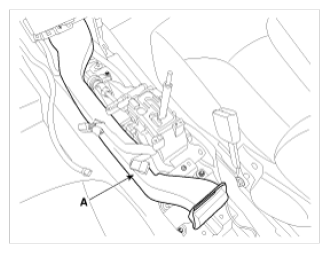

Remove the air duct (A).

Fig 1: Identifying Air Duct
Courtesy of KIA MOTORS AMERICA, INC.

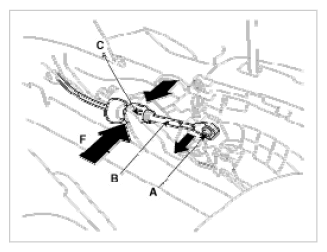

Disconnect the shift cable (A) and then remove the shift cable (B) after pressing the shift cable socket (C) in the direction of "F".

Fig 2: Pressing Shift Cable Socket
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
Installing method for shift cable lever side

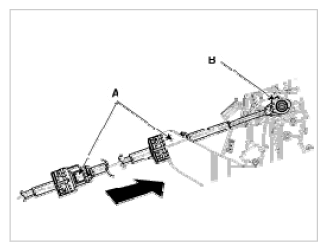

- Install the cable socket part to the lever assembly securely after adjusting the wings (A) of cable socket part upward.
- Install the cable socket part to the lever assembly securely after adjusting the projection (B) to prevent wrong assembly upward.

  Fig 3: Installing Cable Socket To Lever Assembly
  Courtesy of KIA MOTORS AMERICA, INC.

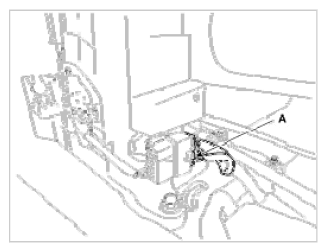

Shift lever assembly connector (A).

Fig 4: Identifying Shift Lever Assembly Connector
Courtesy of KIA MOTORS AMERICA, INC.

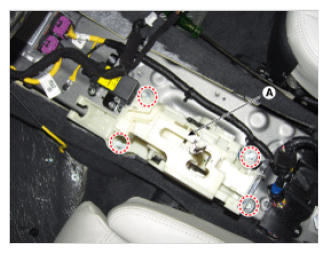

Remove the shift lever assembly (A) by removing the bolts (4ea).
Tightening torque:

8.8 ~ 13.7 N.m (0.9 ~ 1.4 kgf.m, 6.5 ~ 10.1 lb-ft)
