Components and Components Location: Components

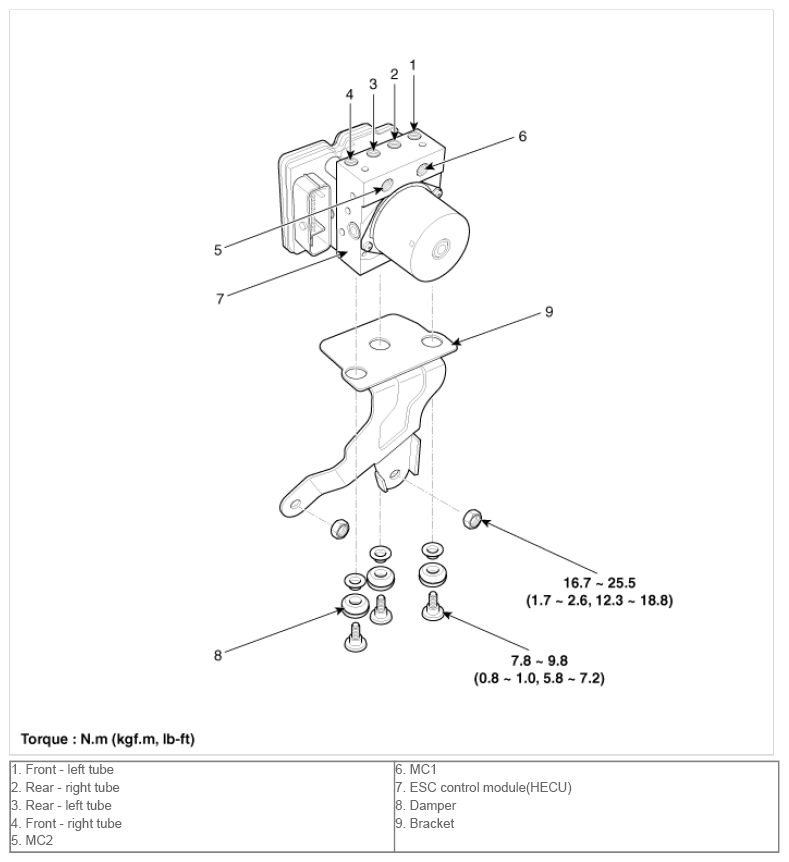

Fig 1: ESC Control Module Components With Torque Specifications
G09744506Courtesy of KIA MOTORS AMERICA, INC.
