Components and Components Location: Components

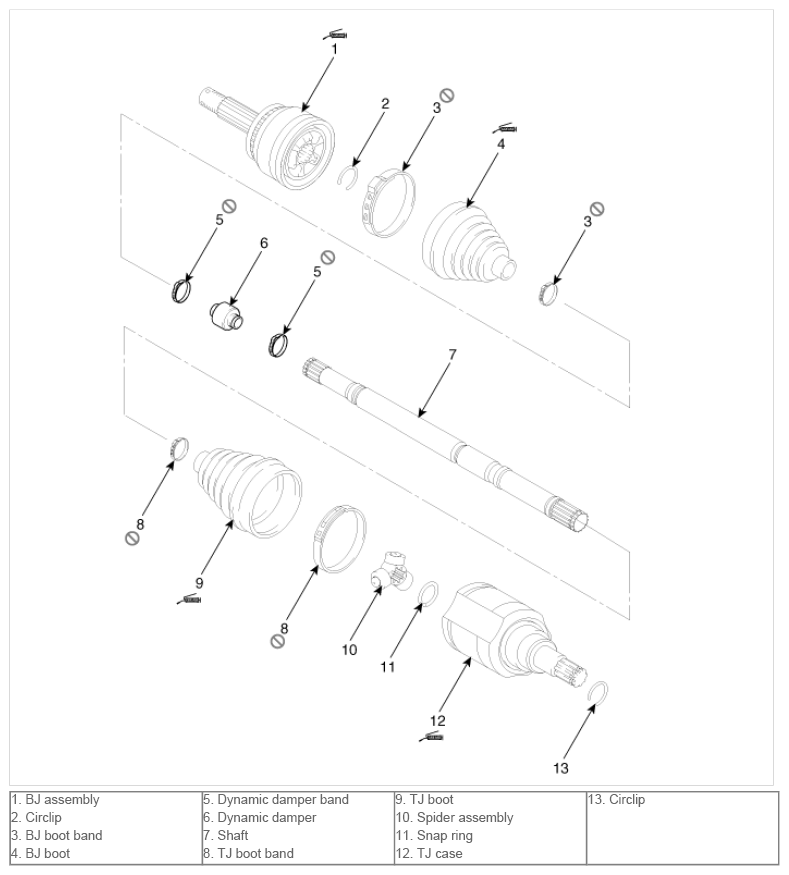

Fig 1: Exploded View Of Driveshaft Assembly Components
G09743452Courtesy of KIA MOTORS AMERICA, INC.
