Charging System - 2.0L: Battery: Troubleshooting

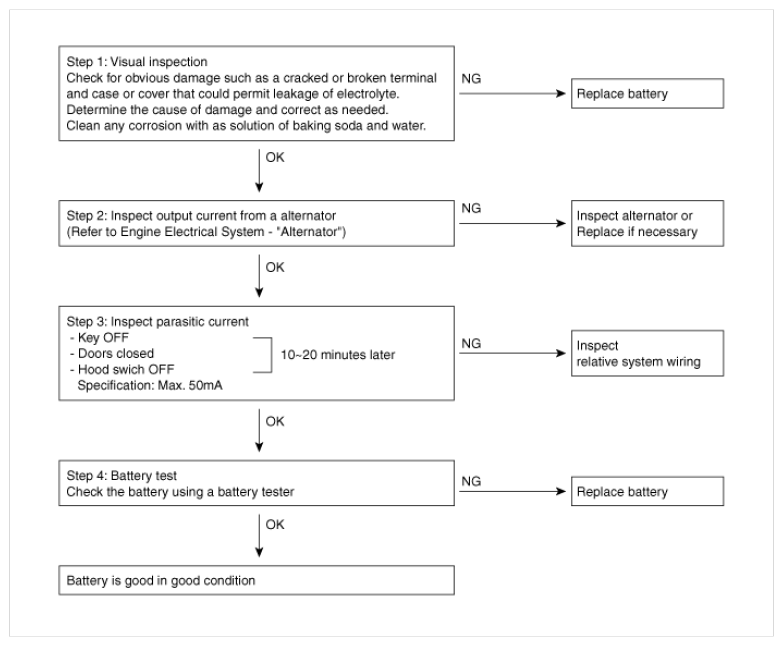

Fig 1: Troubleshooting Workflow Chart

G09742823

Courtesy of KIA MOTORS AMERICA, INC.
