Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative (-) cable.
  2. Disconnect the battery sensor connector (A).
  3. Remove the battery negative (-) cable after removing the bolt (B).

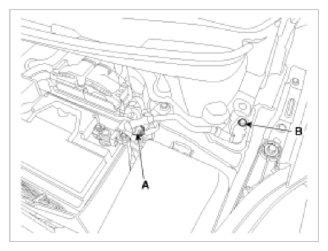

    Fig 1: Identifying Battery Sensor Connector & Bolt
    G09745543Courtesy of KIA MOTORS AMERICA, INC.
