Repair procedures: Removal

Release the residual pressure in fuel line.
(Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ".)
Turn the ignition switch OFF, and then remove battery (-) cable.

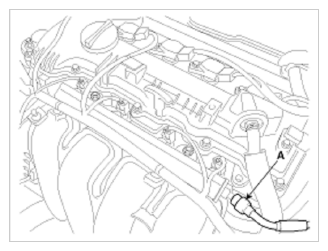

Remove the installation nut (B), and then disconnect the fuel feed tube (A).

Fig 1: Identifying Fuel Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.

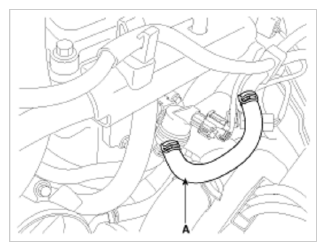

Disconnect the vapor hose (A) which is connected from the PCSV.

Fig 2: Identifying PCSV Vapor Hose
Courtesy of KIA MOTORS AMERICA, INC.
Lift the vehicle.
Remove the fuel tank.
(Refer to "FUEL TANK ")

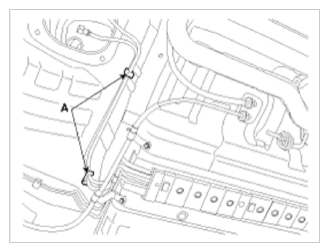

Remove the vapor tube and low fuel line fixing clip (A) by using a common driver.

Fig 3: Identifying Vapor Tube And Low Fuel Line Fixing Clip
Courtesy of KIA MOTORS AMERICA, INC.

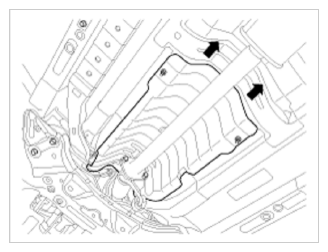

Remove the installation nuts, and then push the heat protector in the direction of an arrow.

Fig 4: Pushing Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

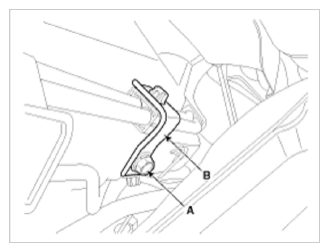

Remove the installation bolts (A), and then remove the fuel line fixing clip (B).

Fig 5: Identifying Fuel Line Fixing Clip And Bolt
Courtesy of KIA MOTORS AMERICA, INC.

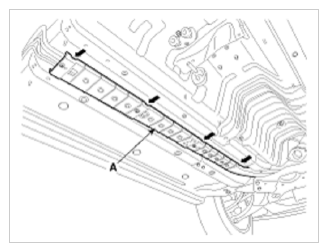

Release the fuel & brake line protector (A) by disconnecting the fixing clip.

Fig 6: Releasing Fuel And Brake Line Protector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the fuel line.

Fig 7: Identifying Fuel Line
Courtesy of KIA MOTORS AMERICA, INC.
