Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative (-) battery terminal.
Remove the driver airbag module.
(Refer to "DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING ")
Remove the steering wheel.
(Refer to "STEERING COLUMN AND SHAFT ")
Remove the steering wheel cover (A) after loosening the screw.

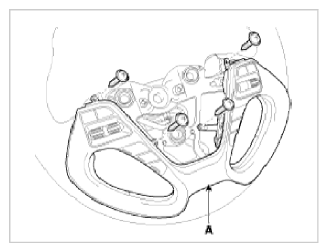

Fig 1: Identifying Steering Wheel Cover & Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the steering heater connectors (A).

Fig 2: Identifying Steering Heater Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the steering remote control switch assembly after loosening the mounting screws (4EA).

Fig 3: Identifying Steering Remote Control Switch Assembly Mounting Screws (4EA)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the switch connectors (A).

Fig 4: Identifying Switch Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cruise control switch (A) after loosening the mounting screws.

Fig 5: Identifying Cruise Control Switch And Screws
Courtesy of KIA MOTORS AMERICA, INC.
