Components And Components Location: Components

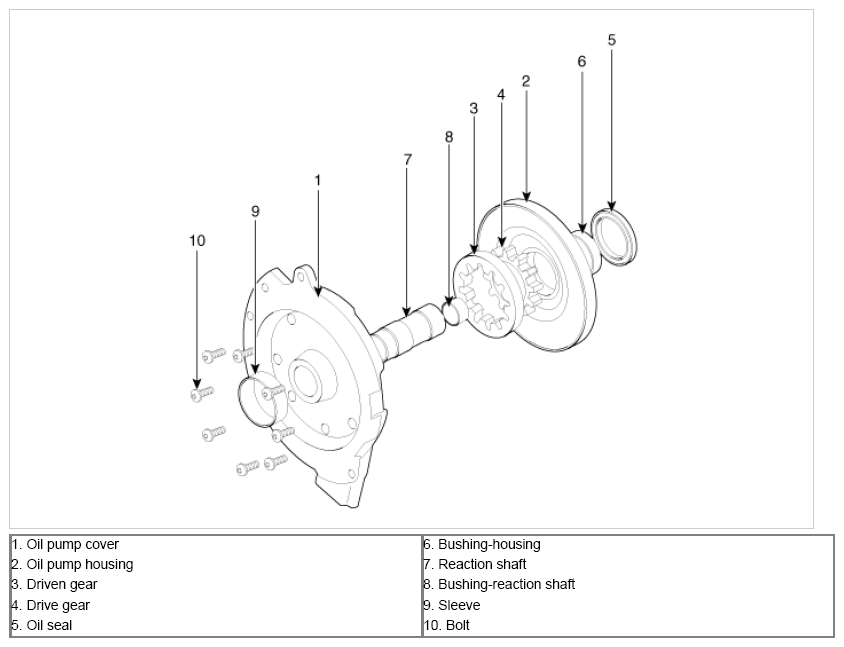

Fig 1: Identifying Oil Pump System Components
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
