Repair procedures: Replacement
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the front seat assembly.
(Refer to "FRONT SEAT ASSEMBLY ")

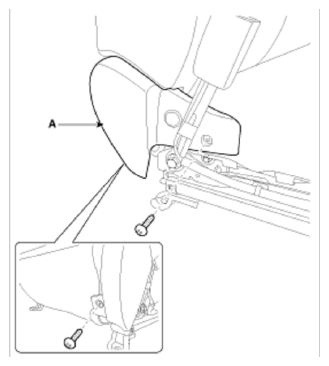

- After loosening the mounting screws, then remove the front seat shield inner cover (A).
- Install in the reverse order of removal.
Information
- Replace any damaged clips.
