Repair Procedures: Inspection: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper cover.

    (Refer to "FRONT BUMPER COVER ")

  3. Remove the bolt and disconnect the horn connectors, then remove the horn (A).

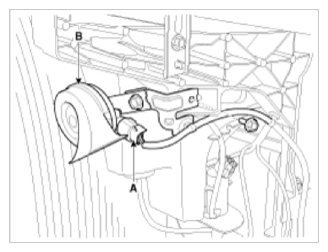

    Fig 1: Identifying Horn And Connectors
    G09744765Courtesy of KIA MOTORS AMERICA, INC.
