Repair Procedures: Disassembly

WARNING: This page is about a different variant/trim than selected.

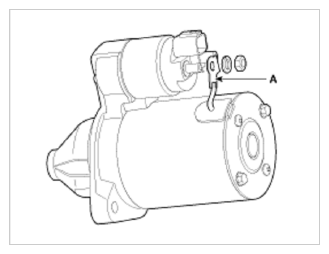

Disconnect the M-terminal (A) on the magnet switch assembly.

Fig 1: Identifying M-Terminal On Magnet Switch Assembly
Courtesy of KIA MOTORS AMERICA, INC.
After loosening the 2 screws (A), detach the magnet switch assembly (B).

Fig 2: Identifying Magnet Switch Assembly & Screws
Courtesy of KIA MOTORS AMERICA, INC.

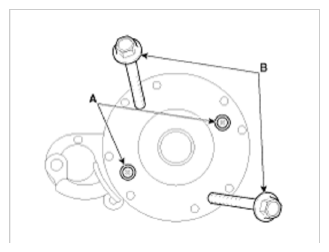

Loosen the brush holder mounting screw (A) and the trough bolts (B).

Fig 3: Identifying Trough Bolts & Brush Holder Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

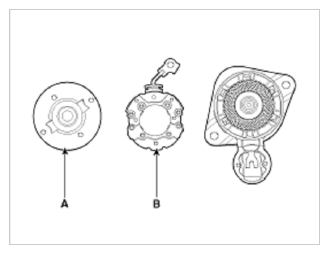

Remove the rear bracket (A) and brush holder assembly (B).

Fig 4: Identifying Rear Bracket & Brush Holder Assembly
Courtesy of KIA MOTORS AMERICA, INC.

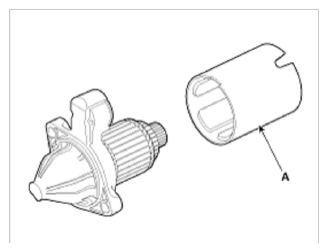

Remove the yoke (A).

Fig 5: Identifying Yoke
Courtesy of KIA MOTORS AMERICA, INC.

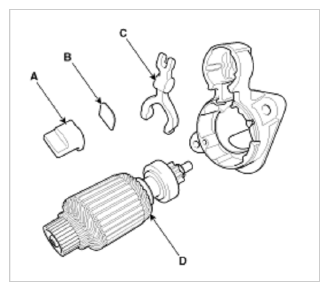

Remove the packing (A), lever plate (B), lever (C), armature (D).

Fig 6: Identifying Packing, Lever Plate, Lever & Armature
Courtesy of KIA MOTORS AMERICA, INC.
Press the stopper (A) using a socket (B).

Fig 7: Pressing Stopper Using Socket Tool
Courtesy of KIA MOTORS AMERICA, INC.

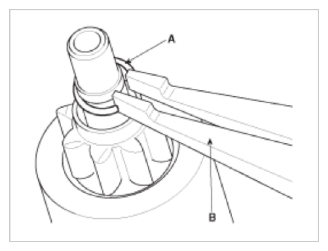

After removing the stop ring (A) using stopper pliers (B).

Fig 8: Removing Stop Ring Using Stopper Pliers
Courtesy of KIA MOTORS AMERICA, INC.

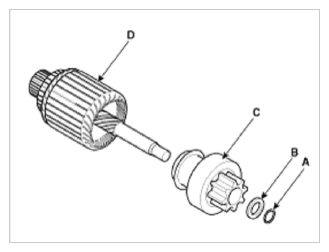

Remove the stop ring (B), stopper (A), overrunning clutch (C) and armature (D).

Fig 9: Identifying Stop Ring, Stopper, Overrunning Clutch & Armature
Courtesy of KIA MOTORS AMERICA, INC.

Information

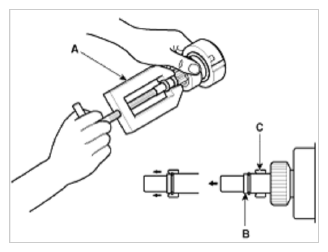

- Using a suitable pulling tool (A), pull the overrunning clutch stopper (C) over the stop ring (B).

  Fig 10: Pulling Out Overrunning Clutch Stopper Using Tool
  Courtesy of KIA MOTORS AMERICA, INC.
