Components Location

WARNING: This page is about a different variant/trim than selected.

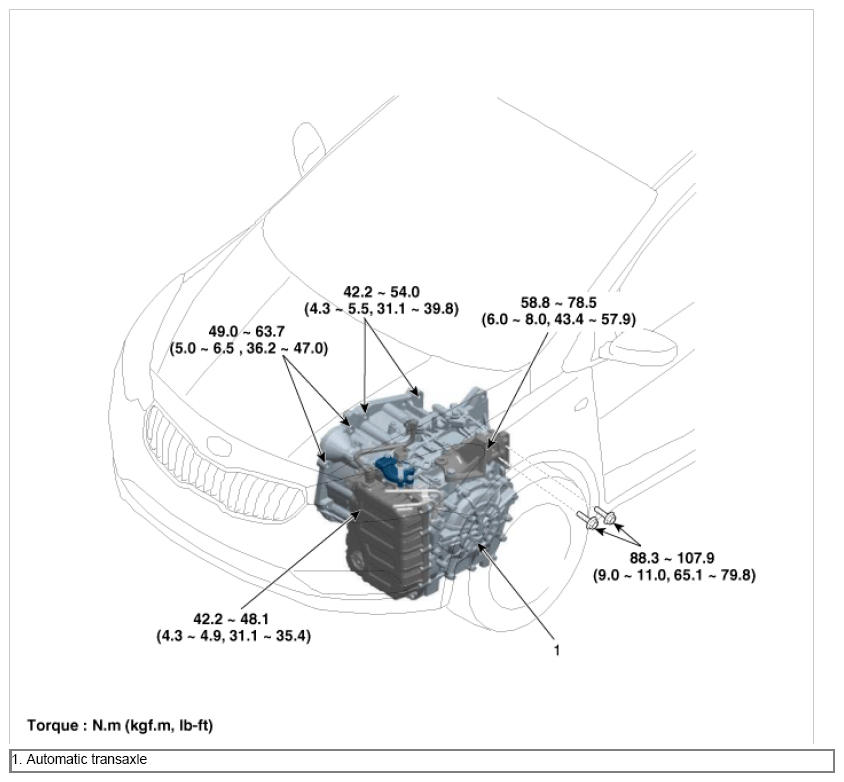

Fig 1: Automatic Transaxle System Replacement Components With Torque Specifications (1 Of 2)
G09747086Courtesy of KIA MOTORS AMERICA, INC.
