Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

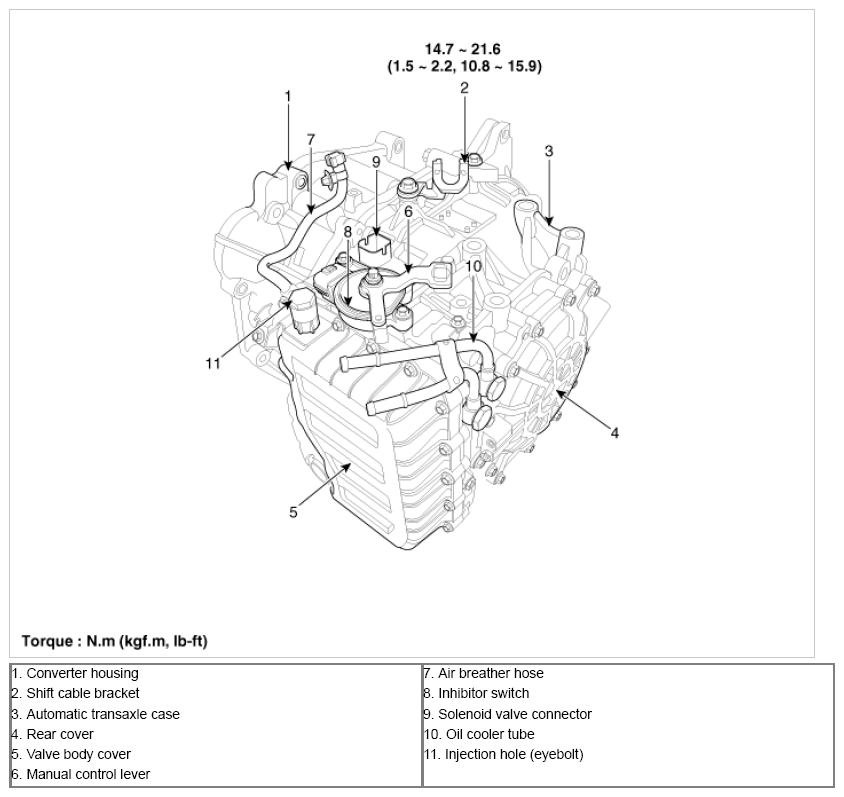

Fig 1: Automatic Transaxle System Replacement Components With Torque Specifications (2 Of 2)
G09747087Courtesy of KIA MOTORS AMERICA, INC.
