Signal Waveform & Data

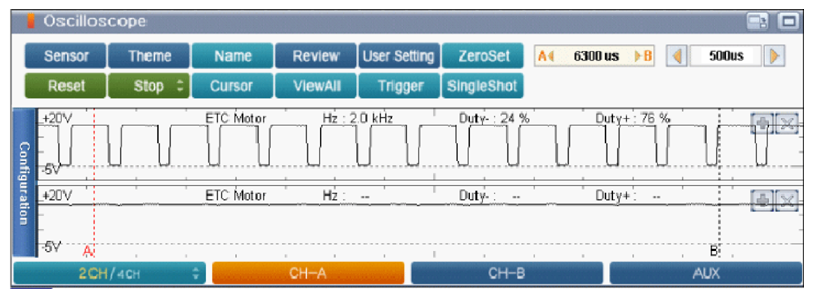

Fig 1: Scantool Display - ETC Motor Signal Waveform

Courtesy of KIA MOTORS AMERICA, INC.

ETC Motor(+) → Duty(+) Approx. 76%

Duty(-) Approx. 24%

ETC Motor(-) → Not in Control
