Component Inspection

Perform ETC Motor
1. Connect GDS to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for ETC Motor.

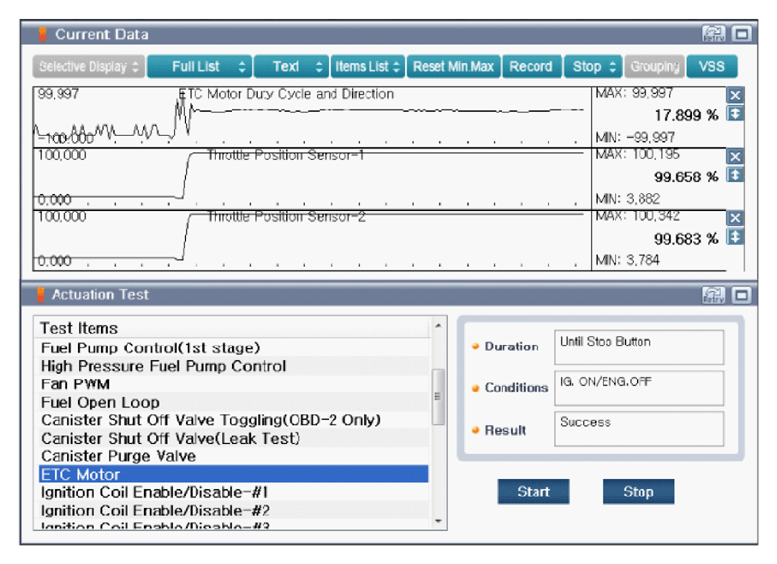

  Fig 1: Scantool Display - ETC Motor Actuation Test
  Courtesy of KIA MOTORS AMERICA, INC.
Inspection ETC Motor
1. IG Key "OFF".
2. Disconnect ETC Motor connector.
3. Measure resistance between power and control terminal of the ETC Motor. (Component Side)
  Specification: Approx. 0.3 ~ 100Ω [20°C (68 °F)]
Confirm Part Inspection
1. Does the ETC Motor operate properly? (Check variation)
  YES
  - Check ETC motor resistance. Resistance should be 0.3 ~100 Ω [20°C (68°F)]
  NO
  - Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
