Repair procedures: Removal

Air cleaner assembly and air duct.
(Refer to AIR CLEANER " ")
Battery and battery tray.
(Refer to "BATTERY ")

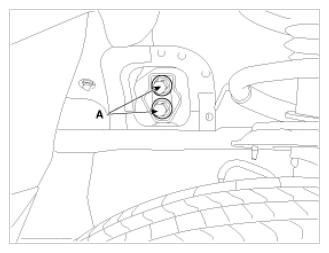

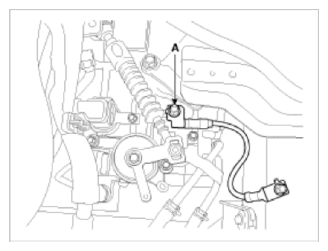

Remove the ground line after removing the bolt (A).

Fig 1: Identifying Ground Line Bolts
Courtesy of KIA MOTORS AMERICA, INC.

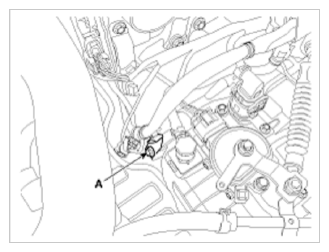

Remove the wiring mounting bolt (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 2: Identifying Wiring Mounting Bolt
Courtesy of KIA MOTORS AMERICA, INC.

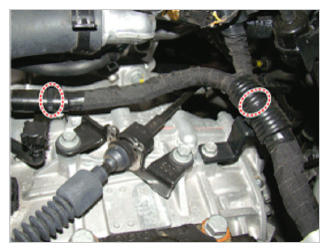

Remove the wiring clip from the bracket.

Fig 3: Identifying Wiring Clip From Bracket
Courtesy of KIA MOTORS AMERICA, INC.

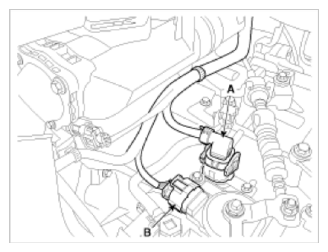

Disconnect the solenoid valve connector (A) and inhibitor switch connector (B).

Fig 4: Identifying Solenoid Valve Connector And Inhibitor Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

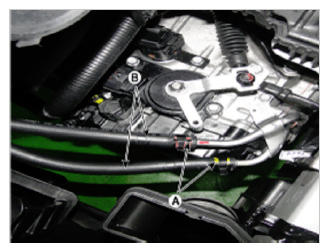

Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).

Fig 5: Identifying Hose And Automatic Transaxle Fluid Cooler Hose Clamp
Courtesy of KIA MOTORS AMERICA, INC.

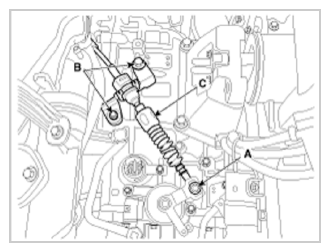

Remove the shift cable (C) after removing the nut (A) and the bolt (B).
Tightening torque:
1. 9.8 ~ 13.7 N.m (1.0 ~ 1.4 kgf.m, 7.2 ~ 10.1 lb-ft)
2. 14.7 ~ 21.6 N.m (1.5 ~ 2.2 kgf.m, 10.9 ~ 15.9 lb-ft)

  Fig 6: Identifying Shift Cable, Nut And Bolt
  Courtesy of KIA MOTORS AMERICA, INC.

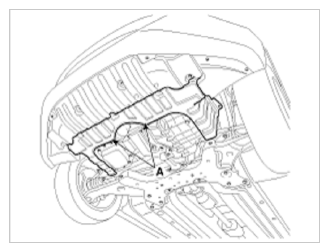

Remove the under cover (A).

Fig 7: Identifying Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

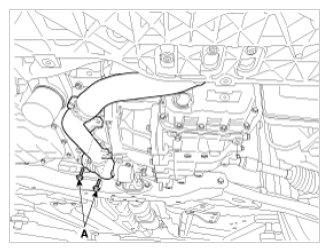

Loosen the intercooler pipe bolts (A).
Tightening torque:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

Fig 8: Identifying Intercooler Pipe Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the brake vacuum pump.
(Refer to "BRAKE BOOSTER ")

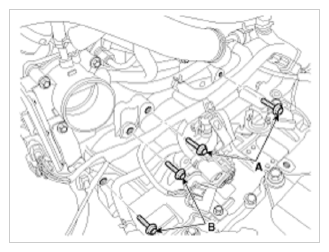

Remove the automatic transaxle upper mounting bolt (A-2ea) and the starter mounting bolt (B-2ea).
Tightening torque:
1. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
2. 49.0 ~ 63.7N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)

  Fig 9: Identifying Automatic Transaxle Upper Mounting Bolts & Starter Mounting Bolts
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to "COWL TOP COVER ")

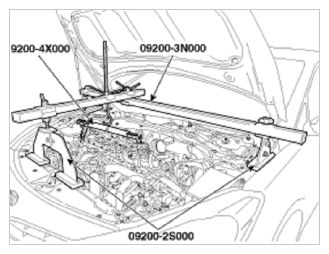

Assemble the engine support fixture.
(Refer to SPECIAL SERVICE TOOLS )
Using the engine support fixture (beam No: 09200-3N000, supporter No: 09200-2S000, adapter No.: 09200-4X000), hold the engine and transaxle assembly safely.

Fig 10: Holding Engine And Transaxle Assembly Using Engine Support Fixture
Courtesy of KIA MOTORS AMERICA, INC.

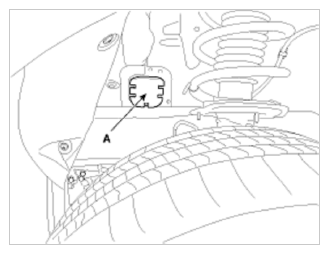

Remove the cover (A).

Fig 11: Identifying Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the transaxle mounting bracket bolts (A).
Tightening torque:

98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

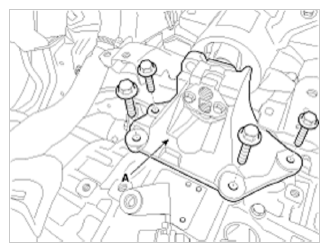

Fig 12: Identifying Transaxle Mounting Bracket Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle support bracket (A).
Tightening torque:

58.8 ~ 78.5 N.m (6.0 ~ 8.0 kgf.m, 43.4 ~ 57.9 lb-ft)

Fig 13: Identifying Transaxle Support Bracket
Courtesy of KIA MOTORS AMERICA, INC.
Remove the drive shaft assembly.
(Refer to FRONT DRIVESHAFT )

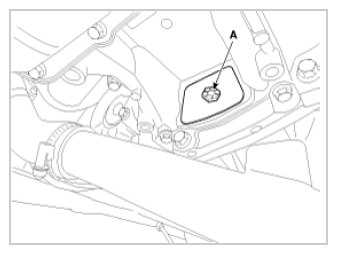

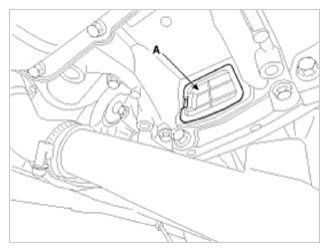

Remove the dust cover (A).

Fig 14: Identifying Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.
Remove the torque converter mounting bolts (A) with rotating the crankshaft.
Tightening torque:

45.1 ~ 52.0 N.m (4.6 ~ 5.3 kgf.m, 33.3 ~ 38.3 lb-ft)

Fig 15: Identifying Torque Converter Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

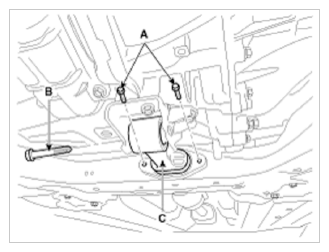

Remove the roll rod bracket (C) after removing bolt (A, B).
Tightening torque:
1. 49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ~ 47.0 lb-ft)
2. 107.9 ~ 127.5 N.m (11.0 ~ 13.0 kgf.m, 79.6 ~ 94.0 lb-ft)

  Fig 16: Identifying Roll Rod Bracket
  Courtesy of KIA MOTORS AMERICA, INC.

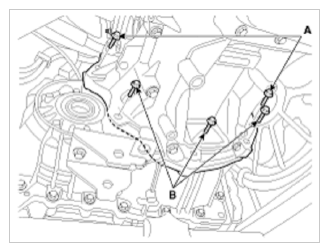

Remove the mounting bolt (A, B) after supporting the transaxle by a jack.
Tightening torque:
1. 42.2 ~ 53.9 N.m (4.3 ~ 5.5 kgf.m, 31.1 ~ 39.8 lb-ft)
2. 42.2 ~ 48.1 N.m (4.9 ~ 5.5 kgf.m, 31.1 ~ 35.4 lb-ft)

  Fig 17: Identifying Mounting Bolt
  Courtesy of KIA MOTORS AMERICA, INC.
Remove the transaxle while slowly lower the jack.
NOTE: Be careful not to damage other system or parts near by when removing the transaxle assembly.
