Component Inspection

Check ECTS performance
1. Connect GDS to DLC (Data Link Cable).
2. Check the "Current Data" about related DTC with GDS.

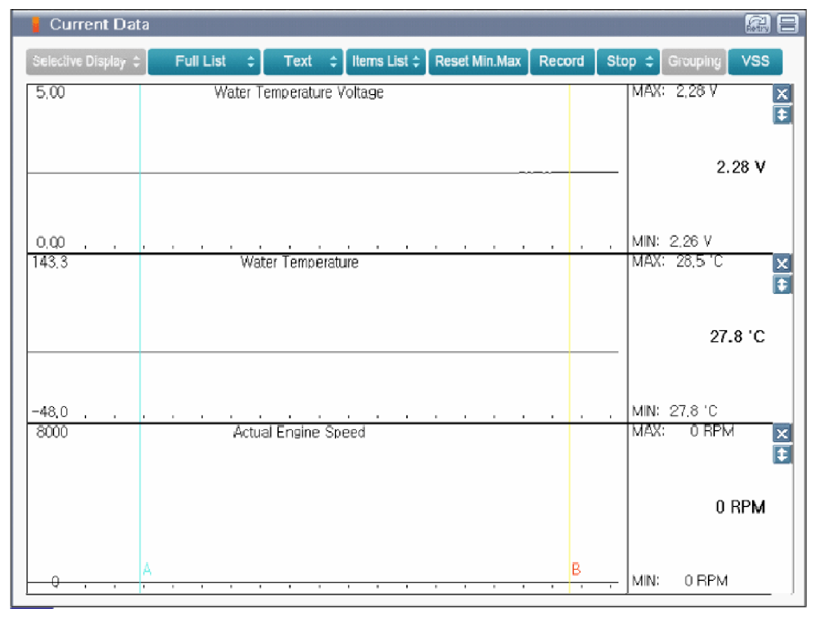

  Fig 1: Scantool Display - IG On & Engine Off (Cold Condition)
  Courtesy of KIA MOTORS AMERICA, INC.

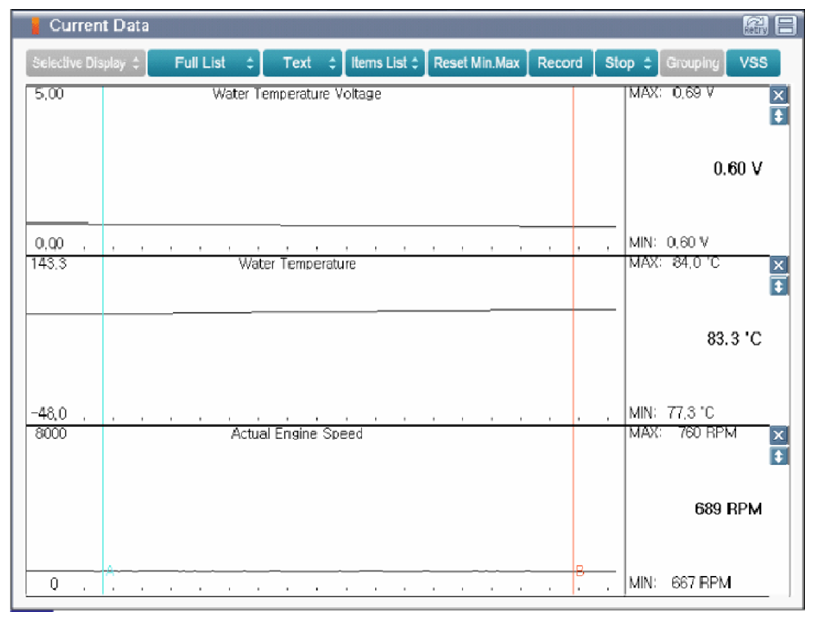

  Fig 2: Scantool Display - Engine Idle After Warm Up
  Courtesy of KIA MOTORS AMERICA, INC.
Confirm Part Inspection
1. Does the ECTS operate properly? (Check variation)
  YES
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good ECTS and check for proper operation. If the problem is corrected, replace ECTS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
