Front To Front End Module Harness Connection Connector End View (EE01)

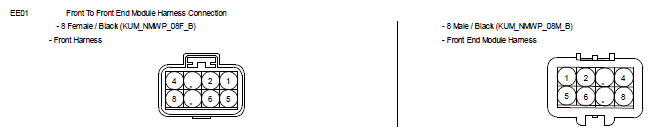

Fig 1: Front To Front End Module Harness Connection Connector End View (EE01)
Courtesy of KIA MOTORS AMERICA, INC.
