Monitor Scantool Data

WARNING: This page is about a different variant/trim than selected.

IG KEY "ON" & Engine "OFF".
Erase DTC after connecting GDS.
Check Smart key status if DTC is retrieved.

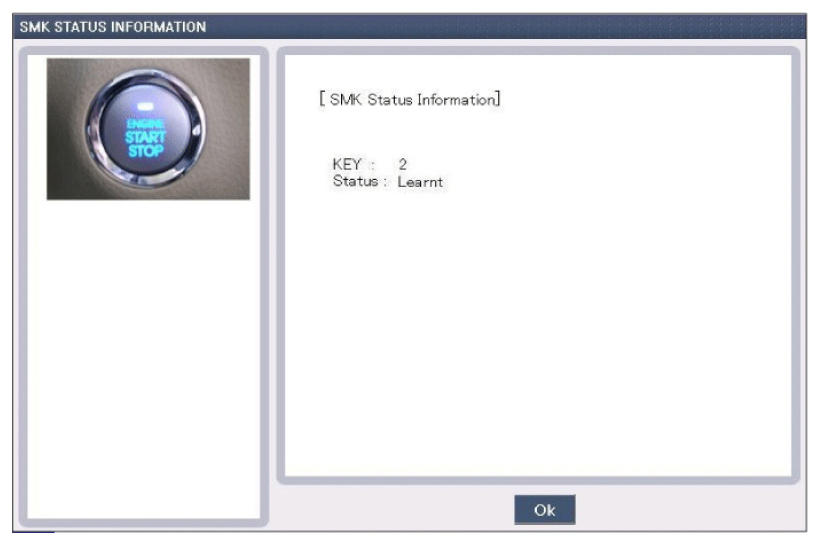

Fig 1: Display - Smart Key Status Information (2 FOB Key Registered, Smart Key PCM Learnt Status)
Courtesy of KIA MOTORS AMERICA, INC.
Is the Smart key PCM learnt status?
YES
- Fault is intermittent caused by poor contact in Smart key PCM and/or PCM's connector or was repaired and Smart key PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "COMPONENT INSPECTION " procedure.
