KNOCK SENSOR DETECTION SYSTEM - ECU LOGIC IMPROVEMENT (PI1803)

KNOCK SENSOR DETECTION SYSTEM - ECU LOGIC IMPROVEMENT (PI1803)

TECHNICAL SERVICE BULLETIN

Reference Number(s): PI1803 Rev 6, Date of Issue:  July 23, 2021
KIA: 2011-2014MY Optima (QF/TF); 2012-2014MY Sorento (XMa); 2011-2013MY Sportage (SL)
GROUP: Product Improvement

SERVICE INFORMATION

NOTE: This bulletin has been revised to include additional information. New/revised sections of this bulletin are indicated below.

This bulletin provides information related to a software update to the Engine Control Unit (ECU) to install the Knock Sensor Detection System (KSDS) in order to protect the engine from excessive connecting rod bearing damage. This update is for:

The KSDS detects vibrations indicating the onset of excessive connecting rod bearing wear. It is designed to alert the driver at an early stage of bearing wear before the occurrence of severe engine damage, including engine failure. If vibrations caused by bearing wear start to occur, the Malfunction Indicator Lamp (MIL) will blink continuously, and the vehicle will be placed in Limp Home Mode. This will reduce further damage to the engine and ensure that the vehicle occupants are not exposed to the risk of a more severe engine failure. At that time, Diagnostic Trouble Code ("DTC") P1326, specific to the KSDS, will be recorded in the ECU. The vehicle can continue to be operated for a limited time in Limp Home Mode, but it will accelerate slowly and have a reduced maximum speed. Also, engine RPMs will be limited to approximately 1800-2000 RPM.

Kia is requesting the completion of this Product Improvement Campaign on all affected vehicles. Before conducting the procedure, verify the vehicle is included in the list of affected VINs. Also, please have your KDS connected to the internet regularly to get the latest software updates available.

NOTE: Prior to conducting the procedure described in this bulletin, please make certain the SC147 inspection/repair procedure has been completed on the affected vehicles. If the SC147 inspection/repair procedure has not been completed, please complete the SC147 inspection/repair procedure BEFORE you perform the software update requested in this bulletin.
NOTE: To assure complete customer satisfaction, always remember to refer to WebDCS Warranty Coverage (validation) Inquiry Screen (Service → Warranty Coverage → Warranty Coverage Inquiry) for a list of any additional campaigns that may need to be performed on the vehicle before returning it to the customer.

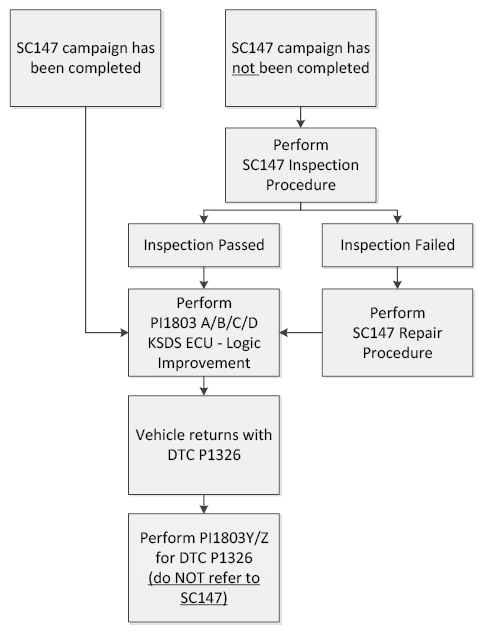

SC147 → PI1803 Flow Chart

G13849316

ECU UPGRADE PROCEDURE

To correct this condition, the ECU should be reprogrammed using the KDS download, as described in this bulletin.

Upgrade Event Name
453. TF THETA 2.0/2.4 Knock Sensor Detection System(KSDS) ECU UPGRADE (11~13MY)
454. QF THETA 2.0/2.4 Knock Sensor Detection System(KSDS) ECU UPGRADE (12~14MY)
455. SL THETA 2.0T-GDI Knock Sensor Detection System(KSDS) ECU UPGRADE (11~13MY)
469. XMA THETA 2.4 KSDS LOGIC IMPROVEMENT (12~14MY, MISDIAGNOSIS PREVENTION LOGIC IMPROVEMENT)
470. TF THETA 2.4 KSDS LOGIC IMPROVEMENT (12~14MY, MISDIAGNOSIS PREVENTION LOGIC IMPROVEMENT)
471. QF THETA 2.4 KSDS LOGIC IMPROVEMENT (12~14MY, MISDIAGNOSIS PREVENTION LOGIC IMPROVEMENT)
NOTE:
  • A fully charged battery is necessary before ECU upgrade can take place. It is recommended that a battery charger is used in ECU mode during reflashing or the use of a fully charged jump starter box connected to the battery.
  • DO NOT connect any other battery charger to the vehicle during ECU upgrade.
  • Ensure the KDS or GDS is sufficiently charged prior to reflash.
  • All ECU upgrades must be done with the ignition key in the 'ON' position.
  • Be careful not to disconnect the VCI-II connected to the vehicle during the ECU upgrade procedure.
  • DO NOT start the engine during ECU upgrade.
  • Do NOT turn the ignition key 'OFF' or interrupt the power supply during ECU upgrade.
  • When the ECU upgrade is completed, turn the ignition 'OFF' and wait 10 seconds before starting the engine.
  • ONLY use approved ECU upgrade software designated for the correct model and model year.
CAUTION: Before attempting an ECU upgrade on any Kia model, make sure to first determine whether the particular model is equipped with an immobilizer security system. Failure to follow proper procedures may cause the PCM to become inoperative after the upgrade and any claims associated with this repair may be subject to chargeback.
CAUTION: For Optima models included in this TSB:
VINs that start with 5XX are designated Optima (QF) and produced in the United States. VINs that start with KNA are designated Optima (TF) and produced in South Korea.
NOTE: It is recommended to ALWAYS check the Electronic Parts Catalog (EPC) to locate the ECU Part Number respective to Auto/Manual Mode ROM IDs. DO NOT reference the parts label affixed to the ECU.

ROM ID INFORMATION TABLE

Upgrade Event #453 (TF), #454 (QF), #455 (SL), #469 (XMa), #470 (TF) and #471 (QF)

Model Engine IMMO ECU P/No. ROM ID
Previous New
12MY Sor. (XMa) 2.4L 2WD Yes 39113-2G770
39113-2G775		 XCC4RB3A
XCC4RB3B
XCC4RB3C
XCC4RB3D
XCC4RB3E
XCC4RB3F
XCC4RB3K
XCC4RB3M		 XCC4RB3O
2.4L AWD 39114-2G770 XCC4RB3A
XCC4RB3B
XCC4RB3C
XCC4RB3D
XCC4RB3E
XCC4RB3F
XCC4RB3L
XCC4RB3N		 XCC4RB3P
2.4L 2WD No 39113-2G760
39113-2G765		 XCC4MB3A
XCC4MB3B
XCC4MB3C
XCC4MB3D
XCC4MB3E
XCC4MB3F
XCC4MB3K
XCC4MB3M		 XCC4MB3O
2.4L AWD 39114-2G760 XCC4MB3A
XCC4MB3B
XCC4MB3C
XCC4MB3D
XCC4MB3E
XCC4MB3F
XCC4MB3L
XCC4MB3N		 XCC4MB3P
13MY Sor. (XMa) 2.4L 2WD Yes 39113-2G771 XDC4RE0A
XDC4REAA
XDC4REAB
XDC4REAC
XDC4REAE
XDC4REAG
XDC4REAK
XDC4REAO		 XDC4REAS
XDC4READ
XDC4REAF
XDC4REAH
XDC4REAM
XDC4REAQ		 XDC4REAU
2.4L AWD 39114-2G771 XDC4RE0A
XDC4REAA
XDC4REAB
XDC4REAC
XDC4REAE
XDC4REAG
XDC4REAL
XDC4REAP		 XDC4REAT
XDC4READ
XDC4REAF
XDC4REAH
XDC4REAN
XDC4REAR		 XDC4REAV
13MY Sor. (XMa) 2.4L 2WD No 39113-2G761 XDC4ME0A
XDC4MEAA
XDC4MEAB
XDC4MEAC
XDC4MEAE
XDC4MEAG
XDC4MEAK
XDC4MEAO		 XDC4MEAS
XDC4MEAD
XDC4MEAF
XDC4MEAH
XDC4MEAM
XDC4MEAQ		 XDC4MEAU
2.4L AWD 39114-2G761 XDC4ME0A
XDC4MEAA
XDC4MEAB
XDC4MEAC
XDC4MEAE
XDC4MEAG
XDC4MEAL
XDC4MEAP		 XDC4MEAT
XDC4MEAD
XDC4MEAF
XDC4MEAH
XDC4MEAN
XDC4MEAR		 XDC4MEAV
14MY Sor. (XMa) 2.4L 2WD Yes 39113-2GBK5
39114-2GBK5		 FDC4RF3A
FDC4RG0A
FDC4RG0B
FEC4RG0C
FEC4RG1K
FEC4RG1M		 FEC4RG1O
FEC4RH2A
FEC4RH2B
FEC4RH2K
FEC4RH2M		 FEC4RH2O
2.4L AWD 39113-2GBL5 FDC4RF3A
FDC4RG0A
FDC4RG0B
FEC4RG0C
FEC4RG1L
FEC4RG1N		 FEC4RG1P
FEC4RH2A
FEC4RH2B
FEC4RH2L
FEC4RH2N		 FEC4RH2P
2.4L 2WD No 39113-2GBK0
39114-2GBK0		 FDC4MF3A
FDC4MG0A
FDC4MG0B
FEC4MG0C
FEC4MG1K
FEC4MG1M		 FEC4MG1O
FEC4MH2A
FEC4MH2B
FEC4MH2K
FEC4MH2M		 FEC4MH2O
2.4L AWD 39113-2GBL0 FDC4MF3A
FDC4MG0A
FDC4MG0B
FEC4MG0C
FEC4MG1L
FEC4MG1N		 FEC4MG1P
FEC4MH2A
FEC4MH2B
FEC4MH2L
FEC4MH2N		 FEC4MH2P
11MY Opt. (TF) 2.4 (ULEV) Yes 39111-2G870 39112-2G870
TBC4R85A
TBC4R86A
TBC4R86B
TBC4R86D
TBC4RB3K
TBC4RB3M		 TBC4RB3O
39111-2G871
39112-2G871		 TBC4R86C
TBC4R88A
TBC4R88B
TBC4RB3A
TBC4RB3B
TBC4RB3C
TBC4RB3L
TBC4RB3N		 TBC4RB3P
No 39111-2G860
39112-2G860		 TBC4M85A
TBC4M86A
TBC4M86B
TBC4M86D
TBC4MB3K
TBC4MB3M		 TBC4MB3O
39111-2G861
39112-2G861		 TBC4M86C
TBC4M88A
TBC4M88B
TBC4MB3A
TBC4MB3B
TBC4MB3C
TBC4MB3L
TBC4MB3N		 TBC4MB3P
11MY Opt. (TF) 2.4 (SULEV) Yes 39111-2G875 TBS4R85A
TBS4R86A
TBS4R86B
TBS4RF3E
TBS4RF3G
TBS4RF3K
TBS4RF3M		 TBS4RF3O
39111-2G876 TBS4R86C
TBS4R88A
TBS4R88B
TBS4RB3A
TBS4RB3B
TBS4RF3F
TBS4RF3H
TBS4RF3L
TBS4RF3N		 TBS4RF3P
No 39111-2G865 TBS4M85A
TBS4M86A
TBS4M86B
TBS4MF3E
TBS4MF3G
TBS4MF3K
TBS4MF3M		 TBS4MF3O
39111-2G866 TBS4M86C
TBS4M88A
TBS4M88B
TBS4MB3A
TBS4MB3B
TBS4MF3F
TBS4MF3H
TBS4MF3L
TBS4MF3N		 TBS4MF3P
12MY Opt. (TF) 2.4 (ULEV) Yes 39111-2G873
39112-2G873		 TCC4RB3K
TCC4REAK
TCC4REAL
TCC4REAM
TCC4REA5
TCC4REA6		 TCC4REA7
No 39111-2G863
39112-2G863		 TCC4MB3K
TCC4MEAK
TCC4MEAL
TCC4MEAM
TCC4MEA5
TCC4MEA6		 TCC4MEA7
2.4 (SULEV) Yes 39111-2G878 TCS4RB3K
TCS4REAK
TCS4REAL
TCS4REAM
TCS4REA5
TCS4REA6		 TCS4REA7
No 39111-2G868 TCS4MB3K
TCS4MEAK
TCS4MEAL
TCS4MEAM
TCS4MEA5
TCS4MEA6		 TCS4MEA7
13MY Opt. (TF) 2.4 (ULEV) Yes 39111-2G902
39112-2G902		 TDC4REAK
TDC4RF0K
TDC4RF3K
TDC4RG1K
TDC4RG1L
TDC4RG1M
TDC4RG15
TDC4RG16		 TDC4RG17
No 39111-2G900
39112-2G900		 TDC4MEAK
TDC4MF0K
TDC4MF3K
TDC4MG1K
TDC4MG1L
TDC4MG1M
TDC4MG15
TDC4MG16		 TDC4MG17
13MY Opt. (TF) 2.4 (SULEV) Yes 39111-2G903 TDS4REAK
TDS4RF0K
TDS4RF3K
TDS4RG1K
TDS4RG1L
TDS4RG1M
TDS4RG15
TDS4RG16		 TDS4RG17
No 39111-2G901 TDS4MEAK
TDS4MF0K
TDS4MF3K
TDS4MG1K
TDS4MG1L
TDS4MG1M
TDS4MG15
TDS4MG16		 TDS4MG17
13MY Opt. (TF) 2.0T (ULEV) Yes 39111-2G895 TDC0RG1K
TDC0RG1L
TDC0RG15		 TDC0RG16
No 39111-2G885 TDC0MG1K
TDC0MG1L
TDC0MG15		 TDC0MG16
11-13MY Opt. (TF) 2.0T (ULEV) Yes 39111-2G890
39111-2G892
39111-2G894		 TBC0R95C
TBC0R96A
TBC0R97A
TBC0R97B
TBC0RB3A
TBC0RC0A
TDC0RF3L
TCC0RC0K
TCC0RC0L
TCC0RC0M
TDC0REAK
TDC0RE5K
TDC0RF3K
TBC0R91A
TBC0R92A
TBC0R93A
TBC0R94A
TBC0R95A
TBC0R95B
TDC0RF35		 TDC0RF36
No 39111-2G880
39111-2G882
39111-2G884		 TBC0M95C
TBC0M96A
TBC0M97A
TBC0M97B
TBC0MB3A
TBC0MC0A
TDC0MF3L
TCC0MC0L
TCC0MC0K
TCC0MC0M
TDC0MEAK
TDC0ME5K
TDC0MF3K
TBC0M91A
TBC0M92A
TBC0M93A
TBC0M94A
TBC0M95A
TBC0M95B
TDC0MF35		 TDC0MF36
12MY Opt. (QF) 2.4 (ULEV) Yes 39111-2G872
39112-2G872		 TCC4RB3A
TCC4REAA
TCC4REAB
TCC4REAC
TCC4REA1
TCC4REA2		 TCC4REA3
No 39111-2G862
39112-2G862		 TCC4MB3A
TCC4MEAA
TCC4MEAB
TCC4MEAC
TCC4MEA1
TCC4MEA2		 TCC4MEA3
2.4 (SULEV) Yes 39111-2G877 TCS4RB3A
TCS4REAA
TCS4REAB
TCS4REAC
TCS4REA1
TCS4REA2		 TCS4REA3
No 39111-2G867 TCS4MB3A
TCS4MEAA
TCS4MEAB
TCS4MEAC
TCS4MEA1
TCS4MEA2		 TCS4MEA3
13MY Opt. (QF) 2.4 (ULEV) Yes 39111-2G874
39112-2G874		 TDC4REAA
TDC4RF0A
TDC4RF3A
TDC4RF3B
TDC4RF3C
TDC4RF31
TDC4RF32		 TDC4RF33
No 39111-2G864
39112-2G864		 TDC4MEAA
TDC4MF0A
TDC4MF3A
TDC4MF3B
TDC4MF3C
TDC4MF31
TDC4MF32		 TDC4MF33
2.4 (SULEV) Yes 39111-2G879 TDS4REAA
TDS4RF0A
TDS4RF3A
TDS4RF3B
TDS4RF3C
TDS4RF31
TDS4RF32		 TDS4RF33
No 39111-2G869 TDS4MEAA
TDS4MF0A
TDS4MF3A
TDS4MF3B
TDS4MF3C
TDS4MF31
TDS4MF32		 TDS4MF33
14MY Opt. (QF) 2.4 (ULEV) Yes 39108-2GBJ0
39118-2GBJ0		 TEC4RH2A
TEC4RH2B
TEC4RH21
TEC4RH22		 TEC4RH23
No 39108-2GBH0
39118-2GBH0		 TEC4MH2A
TEC4MH2B
TEC4MH21
TEC4MH22		 TEC4MH23
2.4 (SULEV) Yes 39108-2GBJ5 TES4RH2A
TES4RH2B
TES4RH21
TES4RH22		 TES4RH23
No 39108-2GBH5 TES4MH2A
TES4MH2B
TES4MH21
TES4MH22		 TES4MH23
12-13MY Opt. (QF) 2.0T (ULEV) Yes 39111-2G891
39111-2G893		 TCC0RC0A
TCC0RC0B
TCC0RC0C
TDC0RF3B
TDC0RE3A
TDC0RE5A
TDC0REAA
TDC0RF3A
TDC0RF31		 TDC0RF32
No 39111-2G881
39111-2G883		 TCC0MC0A
TCC0MC0B
TCC0MC0C
TDC0MF3B
TDC0ME3A
TDC0ME5A
TDC0MEAA
TDC0MF3A
TDC0MF31		 TDC0MF32
12-13MY Opt. (QF) 2.0T (ULEV) Yes 39111-2G895 TDC0RG1A
TDC0RG1B
TDC0RG11		 TDC0RG12
No 39111-2G885 TDC0MG1A
TDC0MG1B
TDC0MG11		 TDC0MG12
14MY Opt. (QF) 2.0T (ULEV) Yes 39108-2GBK5 TEC0RH2A
TEC0RH2B
TEC0RH21		 TEC0RH22
No 39108-2GBK0 TEC0MH2A
TEC0MH2B
TEC0MH21		 TEC0MH22
11-13MY Spo. (SL) 2.0T (ULEV) Yes 39113-2G870
39114-2G870
39113-2G871
39114-2G871
39113-2G872
39114-2G872		 SCC0RB1A
SCC0RB3A
SCC0RC0A
SDC0RF3B
SCC0RC0B
SDC0RE3A
SDC0RE5A
SDC0REAA
SDC0RF3A
SDC0RF3K		 SDC0RF3K
No 39113-2G860
39114-2G860
39113-2G861
39114-2G861
39113-2G862
39114-2G862		 SCC0MB1A
SCC0MB3A
SCC0MC0A
SDC0MF3B
SCC0MC0B
SDC0ME3A
SDC0ME5A
SDC0MEAA
SDC0MF3A
SDC0MF3K		 SDC0MF3L
13MY Spo. (SL) 2.0T (ULEV) Yes 39113-2G873
39114-2G873		 SDC0RG1A
SDC0RG1B
SDC0RG1K		 SDC0RG1K
No 39113-2G863
39114-2G863		 SDC0MG1A
SDC0MG1B
SDC0MG1K		 SDC0MG1K

To verify the vehicle is affected, be sure to check the Calibration Identification of the vehicle's ECM ROM ID and reference the Information Table as necessary.

NOTE: Prior to performing the ECU upgrade, be sure to check that the KDS is fully charged.

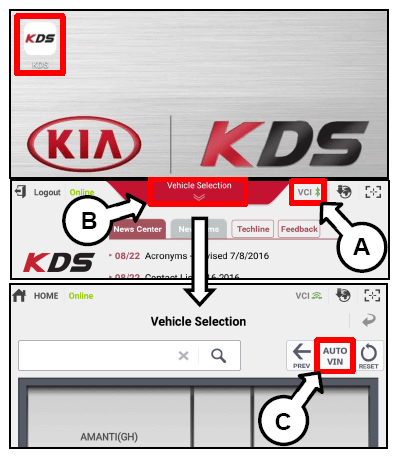

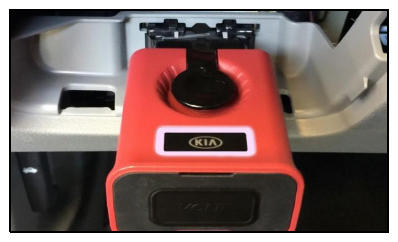

  1. Connect the VCI-II to the OBD-II connector, located under the driver's side of the instrument panel.
    NOTE: The ECU upgrade function on KDS operates wirelessly. It is not necessary to perform the upgrade via USB cable.
    G13849317
  2. With the ignition ON, turn ON the KDS tablet. Select KDS  from the home screen.
    G13849318
  3. Confirm communication with VCI (A) and then configure the vehicle (B) using the AUTO VIN  (C) feature.

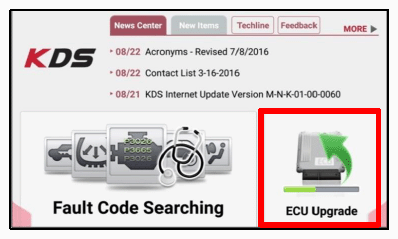

  4. Select ECU Upgrade  .
    G13849319
  5. The KDS will check the server for recently uploaded Events and then automatically download Upgrade Event #452 (XMa), #453 (TF), #454 (QF), or #455 (SL).
    NOTE: The vehicle must be identified in Vehicle Selection to download an Event for that vehicle.
    G13849320
  6. Select Auto Mode  .
    NOTE: Do NOT attempt to perform a Manual Mode upgrade UNLESS Auto Mode fails  . Always follow the instructions given on the KDS in either Auto or Manual mode.
    G13849321

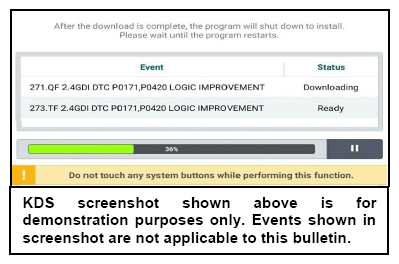

    KDS screenshot shown above is for demonstration purposes only. Events shown in screenshot are not applicable to this bulletin.

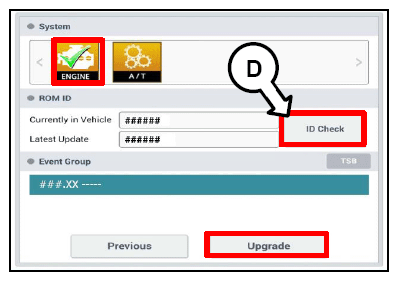

  7. Select the ENGINE  system under the System selection menu.

    Touch ID Check  (D) and confirm that the latest update is available.

    Select Upgrade Event #452 (XMa), #453 (TF), #454 (QF), or #455 (SL)  and select Upgrade  to continue.

    G13849322
  8. The ECU upgrade will begin and the progress of the upgrade will appear on the bar graph. Upgrade part (1/2) (E) will download the upgrade event to the VCIII. Upgrade part (2/2) (F) will upgrade the ECU.
    G13849323
    NOTE: Do not touch the system buttons (like 'Back', 'Home', 'etc.') while performing ECU Upgrade.

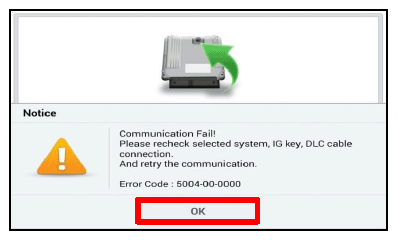

    G13849324
  9. If a "Communication Fail" screen appears, verify that the VCI-II and KDS are communicating properly. Touch OK  and restart the procedure from step  4.
    NOTE: If an error notice continues to appear or if the upgrade cannot be performed, DO NOT disconnect the KDS/VCI-II. Contact GIT America Help Desk at (888) 542-4371 or Techline.

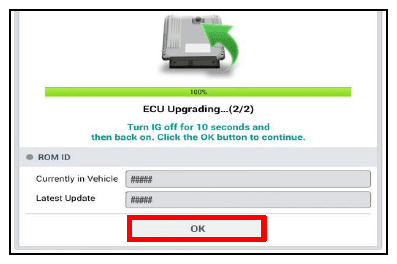

    G13849325
  10. When instructed on the KDS, turn the ignition OFF  for ten (10) seconds then back on. Touch OK  to continue.

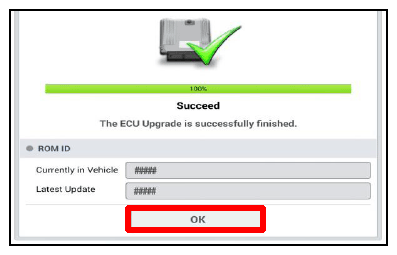

    G13849326
  11. Once the upgrade is complete, touch OK  to finalize the procedure.
    G13849327
  12. When prompted, select YES  to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
    G13849328
  13. Start the engine to confirm proper operation of the vehicle.

MANUAL UPGRADE PROCEDURE

NOTE: The manual upgrade should ONLY be performed if the automatic upgrade fails.
If the automatic upgrade fails, turn the ignition OFF for about 10 seconds then place it back in the ON position to reset the control unit BEFORE performing manual upgrade.
See table below for Manual Mode passwords.
NOTE: It is recommended to ALWAYS check the Electronic Parts Catalog (EPC) to locate the ECU Part Number respective to Manual Mode upgrade passwords. DO NOT reference the parts label affixed to the ECU.
  1. Within the ECU Upgrade screen displayed, select Manual Mode  .
  2. Select the ENGINE  system under the System selection menu. Select Upgrade Event #453 (TF), #454 (QF), #455 (SL), #469 (XMa), #470 (TF), #471 (QF)  and select Upgrade  to continue.
  3. Select the appropriate control unit part number with reference to the ROM ID Information Table on page 3-8, and select OK  .
  4. Enter the appropriate password from the Manual Mode password table above and select OK  .
  5. The upgrade will begin and the progress of the upgrade will appear on the bar graph.
  6. When instructed on the KDS, turn the ignition OFF  for ten (10) seconds then back on. Touch OK  to continue.
  7. Once the upgrade is complete, touch OK  to finalize the procedure.
  8. When prompted, select YES  to check for Diagnostic Trouble Codes (DTC) and erase any DTCs stored such as EPS, ESC, and TPMS that may have been set during the upgrade.
  9. Start the engine to confirm proper operation of the vehicle.

Manual Mode ECU Upgrade Passwords

Model Menu Password
XMA XMA 2.4GDI -IMMO 12MY(2WD): 39113-2G760/65 [2WD_XCC4MB3A/3B/3C/3D/3E/3F/3K/3M] 5201
XMA 2.4GDI -IMMO 12MY(4WD): 39114-2G760 [4WD_XCC4MB3A/3B/3C/3D/3E/3F/3L/3N] 5202
XMA 2.4GDI +IMMO/SMK 12MY(2WD): 39113-2G770/75 [2WD_XCC4RB3A/3B/3C/3D/3E/3F/3K/3M] 5203
XMA 2.4GDI +IMMO/SMK 12MY(4WD): 39114-2G770 [4WD_XCC4RB3A/3B/3C/3D/3E/3F/3L/3N] 5204
XMA 2.4GDI -IMMO 13MY(2WD): 39113-2G761 [2WD_XDC4ME0A/AA/AB/AC/AE/AG/AK/AO] 5205
XMA 2.4GDI -IMMO 13MY(2WD): 39113-2G761 [2WD_XDC4MEAD/AF/AH/AM/AQ] 5206
XMA 2.4GDI -IMMO 13MY(4WD): 39114-2G761 [4WD_XDC4ME0A/AA/AB/AC/AE/AG/AL/AP] 5207
XMA 2.4GDI -IMMO 13MY(4WD): 39114-2G761 [4WD_XDC4MEAD/AF/AH/AN/AR] 5208
XMA 2.4GDI +IMMO/SMK 13MY(2WD): 39113-2G771 [2WD_XDC4RE0A/AA/AB/AC/AE/AG/AK/AO] 5209
XMA 2.4GDI +IMMO/SMK 13MY(2WD): 39113-2G771 [2WD_XDC4READ/AF/AH/AM/AQ] 5210
XMA 2.4GDI +IMMO/SMK 13MY(4WD): 39114-2G771 [4WD_XDC4RE0A/AA/AB/AC/AE/AG/AL/AP] 5211
XMA 2.4GDI +IMMO/SMK 13MY(4WD): 39114-2G771 [4WD_XDC4READ/AF/AH/AN/AR] 5212
XMA 2.4GDI -IMMO 14MY(2WD): 39113/14-2GBK0 [2WD_FDC4MF3A/G0A/G0B/FEC4MG0C/G1K/G1M] 5213
XMA 2.4GDI -IMMO 14MY(2WD): 39113/14-2GBK0 [2WD_FEC4MH2A/2B/2K/2M] 5214
XMA 2.4GDI -IMMO 14MY(4WD): 39113-2GBL0 [4WD_FDC4MF3A/G0A/G0B/FEC4MG0C/G1L/G1N] 5215
XMA 2.4GDI -IMMO 14MY(4WD): 39113-2GBL0 [4WD_FEC4MH2A/2B/2L/2N] 5216
XMA 2.4GDI +IMMO/SMK 14MY(2WD): 39113/14-2GBK5 [2WD_FDC4RF3A/G0A/G0B/FEC4RG0C/G1K/G1M] 5217
XMA 2.4GDI +IMMO/SMK 14MY(2WD): 39113/14-2GBK5 [2WD_FEC4RH2A/2B/2K/2M] 5218
XMA 2.4GDI +IMMO/SMK 14MY(4WD): 39113-2GBL5 [4WD_FDC4RF3A/G0A/G0B/FEC4RG0C/G1L/G1N] 5219
XMA 2.4GDI +IMMO/SMK 14MY(4WD): 39113-2GBL5 [4WD_FEC4RH2A/2B/2L/2N] 5220
TF TF 2.4 GDI -IMMO 11MY(ULEV/4WD): 39111/12-2G860 5301
TF 2.4 GDI -IMMO 11MY(ULEV/4WD): 39111/12-2G861 5302
TF 2.4 GDI +IMMO/SMK 11MY(ULEV/4WD): 39111/12-2G870 5303
TF 2.4 GDI +IMMO/SMK 11MY(ULEV/4WD): 39111/12-2G871 5304
TF 2.4 GDI -IMMO 11MY(SULEV/4WD): 39111-2G865 5305
TF 2.4 GDI -IMMO 11MY(SULEV/4WD): 39111-2G866 5306
TF 2.4 GDI +IMMO/SMK 11MY(SULEV/4WD): 39111-2G875 5307
TF 2.4 GDI +IMMO/SMK 11MY(SULEV/4WD): 39111-2G876 5308
TF 2.4 GDI -IMMO 12MY(ULEV/4WD): 39111/12-2G863 5309
TF 2.4 GDI +IMMO/SMK 12MY(ULEV/4WD): 39111/12-2G873 5310
TF 2.4 GDI -IMMO 12MY(SULEV/4WD): 39111-2G868 5311
TF 2.4 GDI +IMMO/SMK 12MY(SULEV/4WD): 39111-2G878 5312
TF 2.4 GDI -IMMO 13MY(ULEV/4WD): 39111/12-2G900 5313
TF 2.4 GDI +IMMO/SMK 13MY(ULEV/4WD): 39111/12-2G902 5314
TF 2.4 GDI -IMMO 13MY(SULEV/4WD): 39111-2G901 5315
TF 2.4 GDI +IMMO/SMK 13MY(SULEV/4WD): 39111-2G903 5316
TF 2.0 T-GDI -IMMO 11~13MY(ULEV/4WD): 39111-2G880/82/84 5317
TF 2.0 T-GDI -IMMO 13MY(ULEV/4WD): 39111-2G885 5318
TF 2.0 T-GDI +IMMO/SMK 11~13MY(ULEV/4WD): 39111-2G890/92/94 5319
TF 2.0 T-GDI +IMMO/SMK 13MY(ULEV/4WD): 39111-2G895 5320
QF QF 2.4 GDI -IMMO 12MY(ULEV/4WD): 39111/12-2G862 5401
QF 2.4 GDI +IMMO/SMK 12MY(ULEV/4WD): 39111/12-2G872 5402
QF 2.4 GDI -IMMO 12MY(SULEV/4WD): 39111-2G867 5403
QF 2.4 GDI +IMMO/SMK 12MY(SULEV/4WD): 39111-2G877 5404
QF 2.4 GDI -IMMO 13MY(ULEV/4WD): 39111/12-2G864 5405
QF 2.4 GDI +IMMO/SMK 13MY(ULEV/4WD): 39111/12-2G874 5406
QF 2.4 GDI -IMMO 13MY(SULEV/4WD): 39111-2G869 5407
QF 2.4 GDI +IMMO/SMK 13MY(SULEV/4WD): 39111-2G879 5408
QF 2.4 GDI -IMMO 14MY(ULEV/4WD): 39108/18-2GBH0 5409
QF 2.4 GDI +IMMO/SMK 14MY(ULEV/4WD): 39108/18-2GBJ0 5410
QF 2.4 GDI -IMMO 14MY(SULEV/4WD): 39108-2GBH5 5411
QF 2.4 GDI +IMMO/SMK 14MY(SULEV/4WD): 39108-2GBJ5 5412
QF 2.0 T-GDI -IMMO 12~13MY(ULEV/4WD): 39111-2G881/83 5413
QF 2.0 T-GDI -IMMO 13MY(ULEV/4WD): 39111-2G885 5414
QF 2.0 T-GDI +IMMO/SMK 12~13MY(ULEV/4WD): 39111-2G891/93 5415
QF 2.0 T-GDI +IMMO/SMK 13MY(ULEV/4WD): 39111-2G895 5416
QF 2.0 T-GDI -IMMO 14MY(ULEV/4WD): 39108-2GBK0 5417
QF 2.0 T-GDI +IMMO/SMK 14MY(ULEV/4WD): 39108-2GBK5 5418
SL SL 2.0T-GDI -IMMO 11~13MY(ULEV/4WD): 39113/14-2G860/61/62 5501
SL 2.0T-GDI -IMMO 13MY(ULEV/4WD): 39113/14-2G863 5502
SL 2.0T-GDI +IMMO/SMK 11~13MY(ULEV/4WD): 39113/14-2G870/71/72 5503
SL 2.0T-GDI +IMMO/SMK 13MY(ULEV/4WD): 39113/14-2G873 5504

AFFECTED VEHICLE RANGE

Model Production Date Range
11-13MY Optima (QF/TF) August 12, 2010 through September 27, 2013
14MY Optima (QF) August 28, 2013 through May 15, 2014
12-14MY Sorento (XMa) April 19, 2011 through February 10, 2014
11-13MY Sportage (SL) December 30, 2010 through August 30, 2013

WARRANTY INFORMATION (PI1803A/B/C/D)

N Code: N99 C Code: C99

Model Claim Type Causal P/N Qty. Repair Description Labor Op Code Op Time Replacement P/N Qty.
TF (11-13MY) R 39111
2G870		 0 (PI1803A/B/C/D) KSDS - ECU Logic Improvement 180133R0 0.3 M/H N/A 0
QF (12-14MY) R 39111
2G872		 0 (PI1803A/B/C/D) KSDS - ECU Logic Improvement 180A22R0 0.3 M/H N/A 0
XMa (12-14MY) R 39113
2G770		 0 (PI1803A/B/C/D) KSDS - ECU Logic Improvement 180A21R0 0.3 M/H N/A 0
SL (11-13MY) R 39113
2G860		 0 (PI1803A/B/C/D) KSDS - ECU Logic Improvement 180134R0 0.3 M/H N/A 0
NOTE: VIN inquiry data for this repair is provided for tracking purposes only. Kia retailers should reference PI1803*  when accessing the WebDCS system.
scientia non olet · About LEMON Manuals
