Diagnostic Circuit Diagram

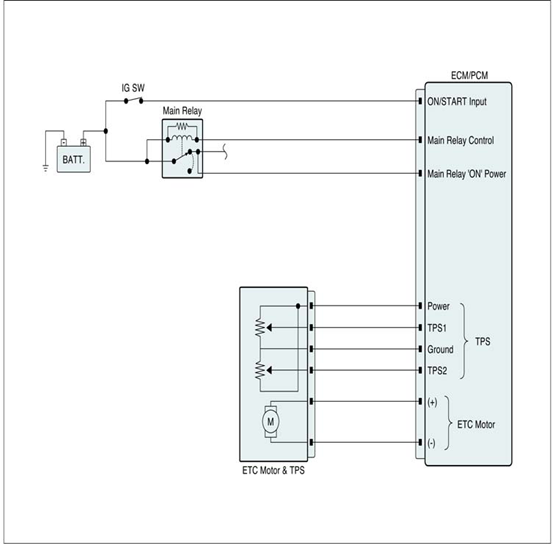

Fig 1: ETC Motor And TPS - Circuit Diagram
G08324547Courtesy of KIA MOTORS AMERICA, INC.

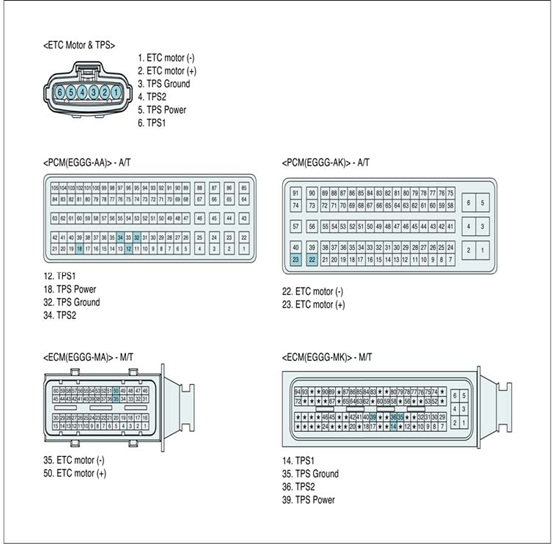

Fig 2: Identifying ETC Motor And TPS Connector Terminals
G08324548Courtesy of KIA MOTORS AMERICA, INC.
